Design & Customization

Provide wide-ranged custom options and the latest innovative designs



At EOS Secure we have a passion for helping our customers to find the best tailored solutions. In order to build a long-term business partnership, our R&D team has creativity in developing new innovative products to help customers win the market.

Want to start a project with us? Contact us

eos patented lock cylinder manufacturer

EOS Secure: The Next Big Thing Is To Be A Design-Oriented Manufacturer

In recent years, by helping our customers to produce customized lock cylinders, EOS Secure had the opportunity to get in touch with the professionals in the industry and study the industry trends. It makes EOS Secure one of the most professional manufacturers of lock cylinders.

In order to help our customers to win the markets and build a long-term business partnership with them, EOS Secure expands its R&D ability by hiring and cultivating more highly-skilled engineers and investing in high-precision CNC machines and 3D printers.

The next big thing for us to do is keep innovating new patented products to serve our customers better.

Wide-Ranged Custom Options for Your Unique Lock Cylinder Solution

Master key system cylinders and Security cylinders manufacturer

Security Features and Functions

By getting familiar with standard tests such as EN1303, SKG, and TS007 tests, EOS Secure can help our customers to customize the security features or functions that meet the requirements.

  modular functions (custom length)
  anti-drilling protection
  anti-bumping protection
  anti-picking protection
  anti-breaking protection
  anti-3D copy protection
  anti-snapping protection
  double-clutch function (emergency function)

Ask a consultant

Keyway / Key Profile

Some customers require their unique keyways. In this case, EOS Secure offers designing service and builds new broaching toolings for our customers. A new keyway can be patented locally. As for the large-scale project, some customers require one key system keyway and several keyways working in one master key system.

  conventional teeth keyway
  reversible dimple keyway
  one key system keyway (various locks using one key way)
  different keyways working in one master key system to enlarge the key combinations

Ask for an unique keyway

Different Housings Standards

There are many different standards of lock cylinders in the world because there are different standards of locks too. EOS Secure provides several options so you can choose the suitable ones.

  European profile
  American standards (Rim/KIK/Mortise/SFIC)
  Oval profiles (Australian oval/Scandinavian oval/Lockwood type oval)
  Swiss profile
  padlock cylinders

Learn more about our products

Different Sizes/Types, Key Bow Designs, Packages and Custom Logos

EOS Secure is dedicated to help our customers to succeed in their markets. In order to meet different customers’ requirements, EOS Secure offer many options for our customers.

As for lock cylinder sizes/types (example for European profile)
  different lengths of the lock cylinders (from 30mm-150mm)
  different types of the lock cylinders (single open/double open/half cylinder/privacy)

As for key bow designs
  metal key head design
  plastic key head design

As for packages (here we attached different designs by pictures)
  white box/neutral packing
  color box with plastic form inside
  blister packing

As for custom logos
  logos on the keys
  logos on the front face of the cylinders (laser or stamping)
  logos on the individual color box
  logos on the outer carton

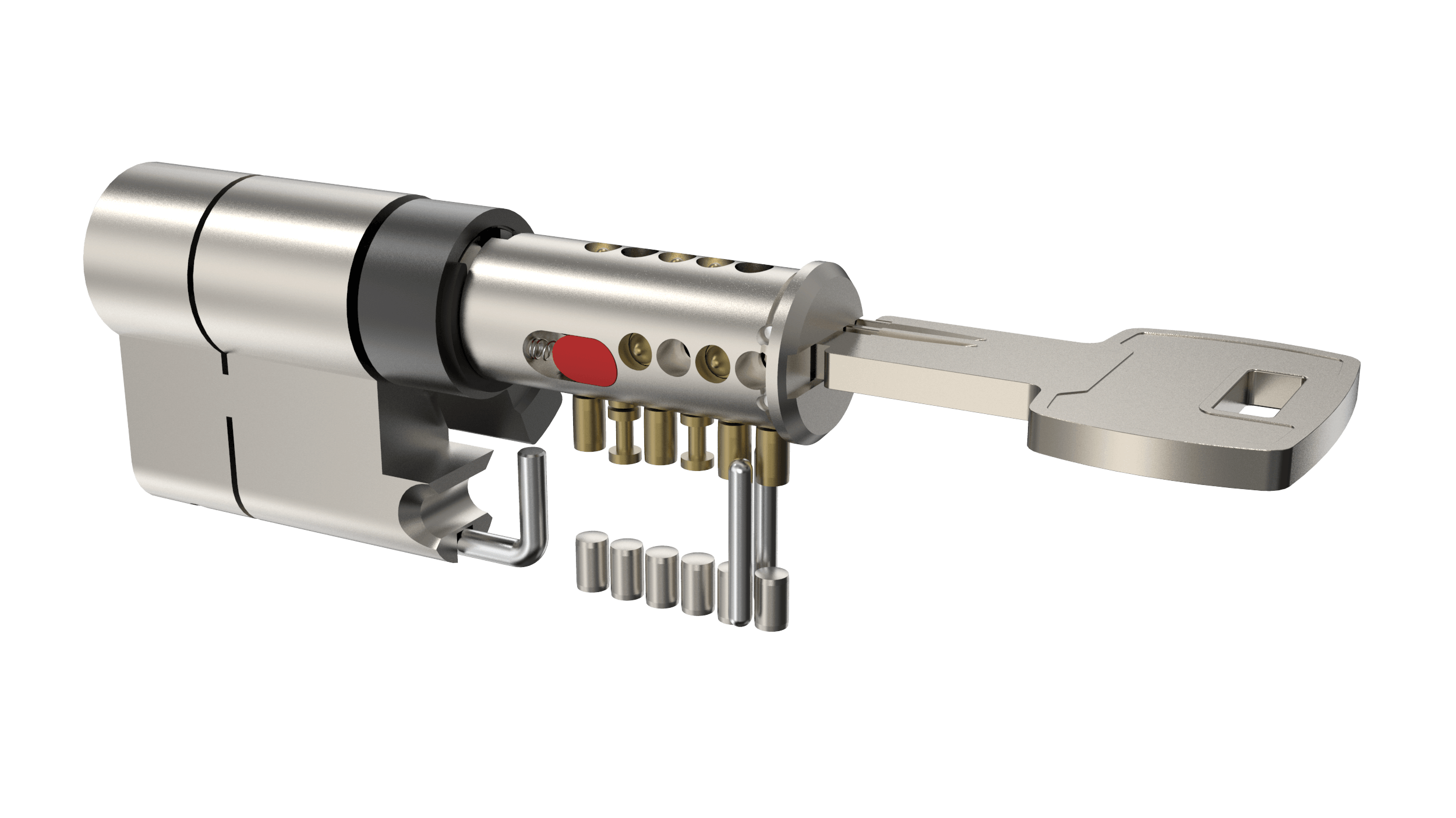

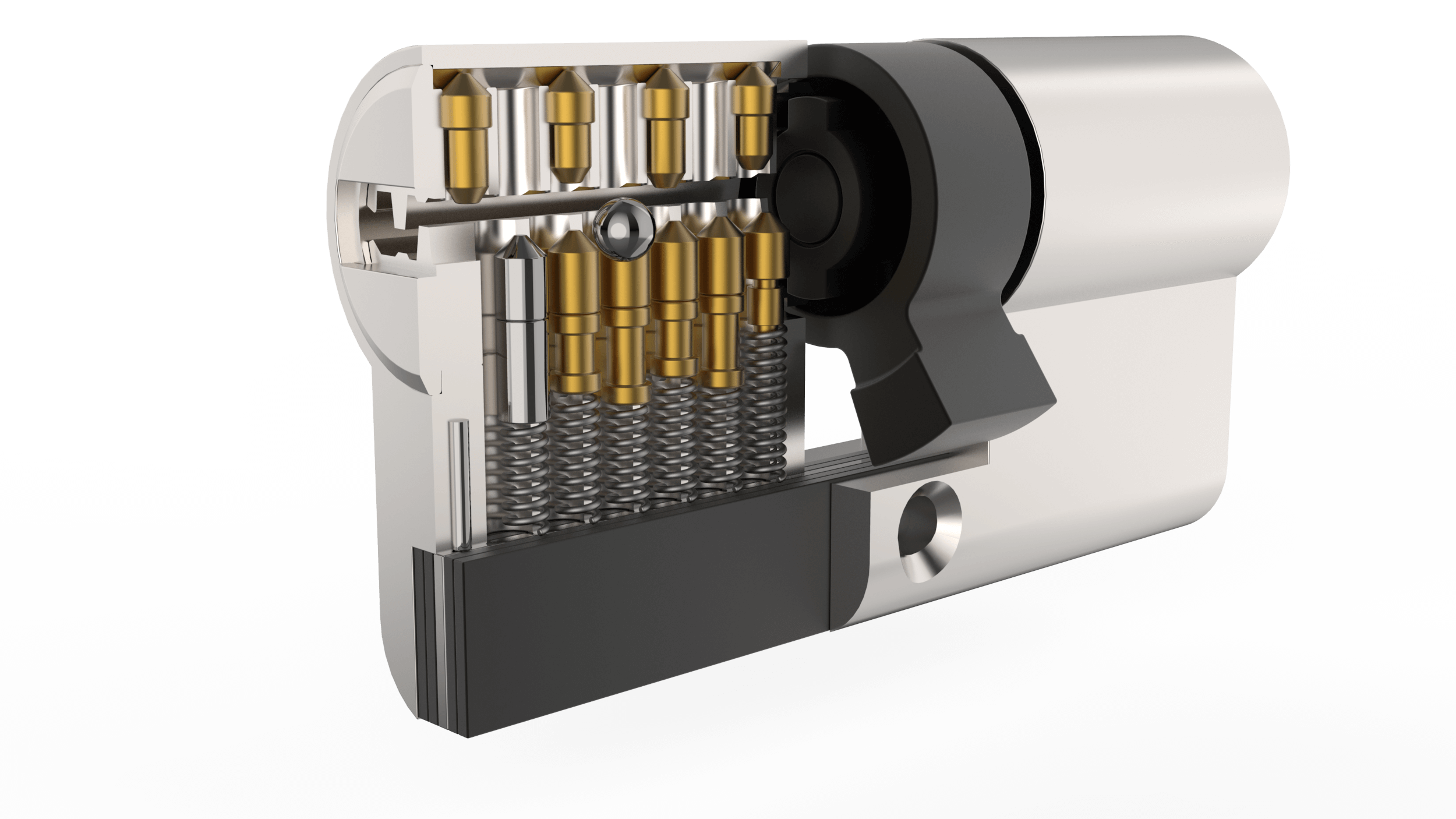

Lock Cylinder Structure

EOS Secure offers customization services, including customizing the lock cylinder structure. Different markets have different requirements for hot-selling lock cylinders. By customizing the lock cylinder structure, our customers can serve their customers better.

  number of main pins/active pins
  diameter and distance of main pins
  snake pins
  telescopic pins
  passive pins/back pins/side pins
  floating pins/movable elements
  angle pins
  special shape pins
  multi-rows pins
  construction key function

Ask an lock cylinder expert

Master Key System Solution

As for the master key system, EOS Secure offers two kinds of services. First, our customers place orders for KD (Key different) or KA (Key alike) cylinders together with some pins, springs, and other parts. Then their local locksmiths assemble the master key system by themselves. Another service is that we assemble the master key system based on customers’ system charts in our factory. Through strict quality control and separate professional packing with detailed labels, EOS Secure finally offers the most comfortable solutions.

  Accept different scales of the projects
  Many methods to enlarge the key combinations so as to make big scale master key system
  add side pins into the structure of cylinders to enlarge the key combinations
  offering different keyways in one master key system to enlarge the key combinations

Learn more about our master key system cylinder products

Surface Treatment

Surface treatments are performed on the appearance of lock cylinder parts when they are finished machining. Sometimes customers are required to send us a color sample chip so that we can communicate with our surface treatment suppliers.

  electroplating satin nickel/satin brass/satin chrome/polished chrome/pearl nickel/others
  powder coating black/others
  electroplating black
  PVD coating gold/others
  Other customized finishes

Learn more about manufacturing process

Security Features and Functions

By getting familiar with standard tests such as EN1303, SKG, and TS007 tests, EOS Secure can help our customers to customize the security features or functions that meet the requirements.

  modular functions (custom length)
  anti-drilling protection
  anti-bumping protection
  anti-picking protection
  anti-breaking protection
  anti-3D copy protection
  anti-snapping protection
  double-clutch function (emergency function)

Ask a consultant

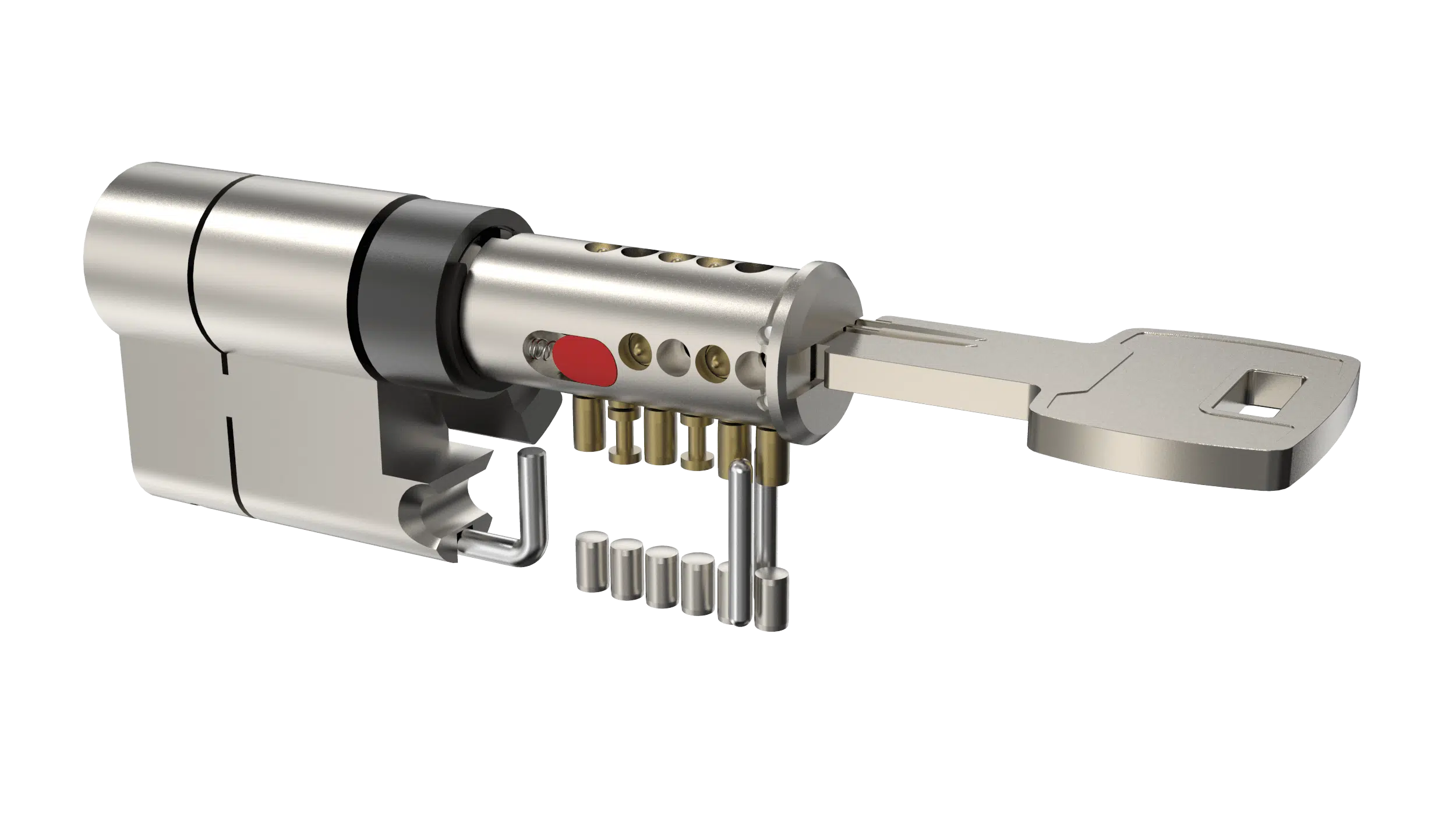

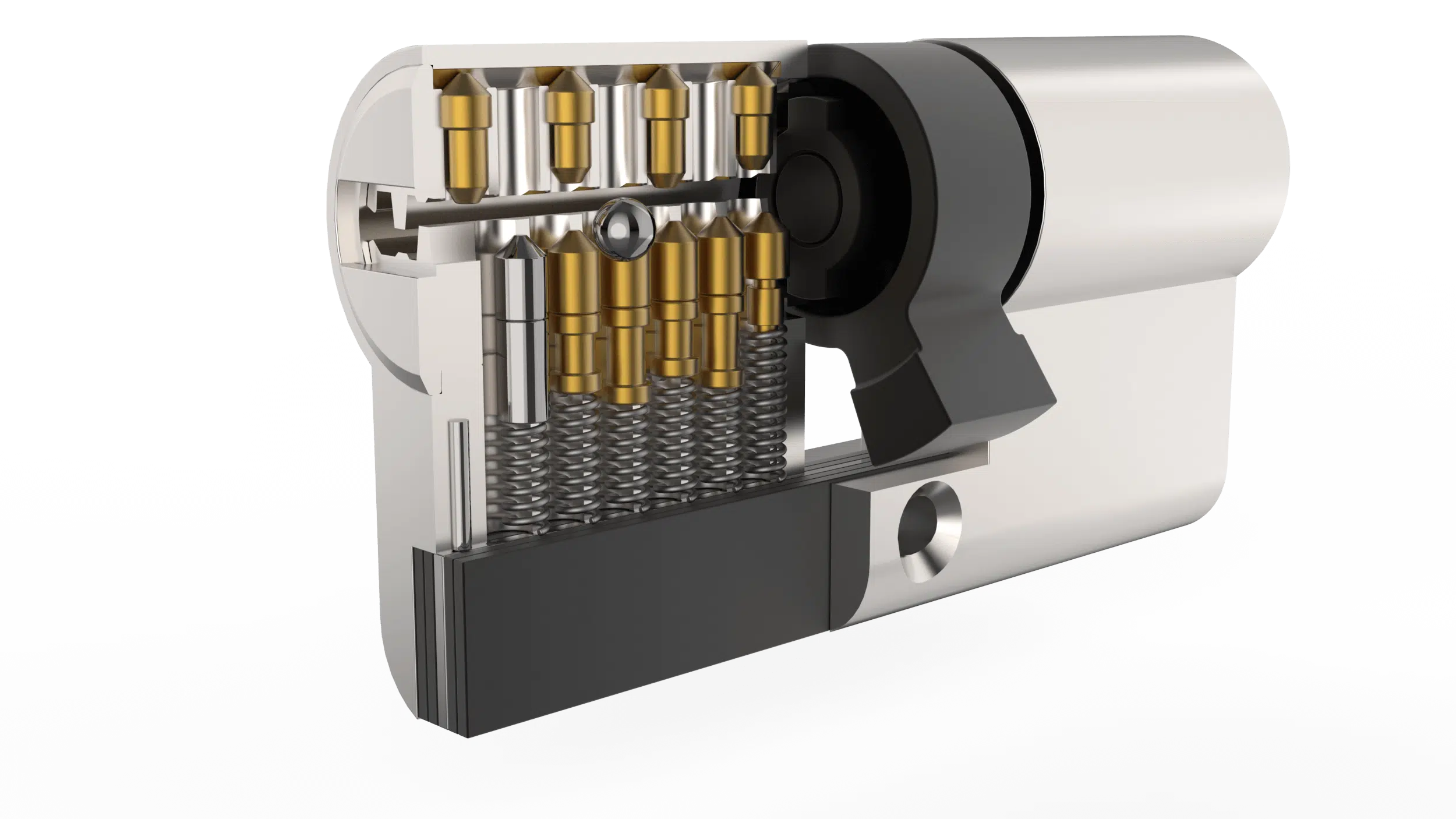

Lock Cylinder Structure

EOS Secure offers customization services, including customizing the lock cylinder structure. Different markets have different requirements for hot-selling lock cylinders. By customizing the lock cylinder structure, our customers can serve their customers better.

  number of main pins/active pins
  diameter and distance of main pins
  snake pins
  telescopic pins
  passive pins/back pins/side pins
  floating pins/movable elements
  angle pins
  special shape pins
  multi-rows pins
  construction key function

Ask an lock cylinder expert

Keyway / Key Profile

Some customers require their unique keyways. In this case, EOS Secure offers designing service and builds new broaching toolings for our customers. A new keyway can be patented locally. As for the large-scale project, some customers require one key system keyway and several keyways working in one master key system.

  conventional teeth keyway
  reversible dimple keyway
  one key system keyway (various locks using one key way)
  different keyways working in one master key system to enlarge the key combinations

Ask for an unique keyway

Master Key System Solution

As for the master key system, EOS Secure offers two kinds of services. First, our customers place orders for KD (Key different) or KA (Key alike) cylinders together with some pins, springs, and other parts. Then their local locksmiths assemble the master key system by themselves. Another service is that we assemble the master key system based on customers’ system charts in our factory. Through strict quality control and separate professional packing with detailed labels, EOS Secure finally offers the most comfortable solutions.

  Accept different scales of the projects
  Many methods to enlarge the key combinations so as to make big scale master key system
  add side pins into the structure of cylinders to enlarge the key combinations
  offering different keyways in one master key system to enlarge the key combinations

Learn more about our master key system cylinder products

Different Housings Standards

There are many different standards of lock cylinders in the world because there are different standards of locks too. EOS Secure provides several options so you can choose the suitable ones.

  European profile
  American standards (Rim/KIK/Mortise/SFIC)
  Oval profiles (Australian oval/Scandinavian oval/Lockwood type oval)
  Swiss profile
  padlock cylinders

Learn more about our products

Surface Treatment

Surface treatments are performed on the appearance of lock cylinder parts when they are finished machining. Sometimes customers are required to send us a color sample chip so that we can communicate with our surface treatment suppliers.

  electroplating satin nickel/satin brass/satin chrome/polished chrome/pearl nickel/others
  powder coating black/others
  electroplating black
  PVD coating gold/others
  Other customized finishes

Learn more about manufacturing process

Different Sizes/Types, Key Bow Designs, Packages and Custom Logos

EOS Secure is dedicated to help our customers to succeed in their markets. In order to meet different customers’ requirements, EOS Secure offer many options for our customers.

As for lock cylinder sizes/types (example for European profile)
  different lengths of the lock cylinders (from 30mm-150mm)
  different types of the lock cylinders (single open/double open/half cylinder/privacy)

As for key bow designs
  metal key head design
  plastic key head design

As for packages (here we attached different designs by pictures)
  white box/neutral packing
  color box with plastic form inside
  blister packing

As for custom logos
  logos on the keys
  logos on the front face of the cylinders (laser or stamping)
  logos on the individual color box
  logos on the outer carton

eos lock cylinder packing

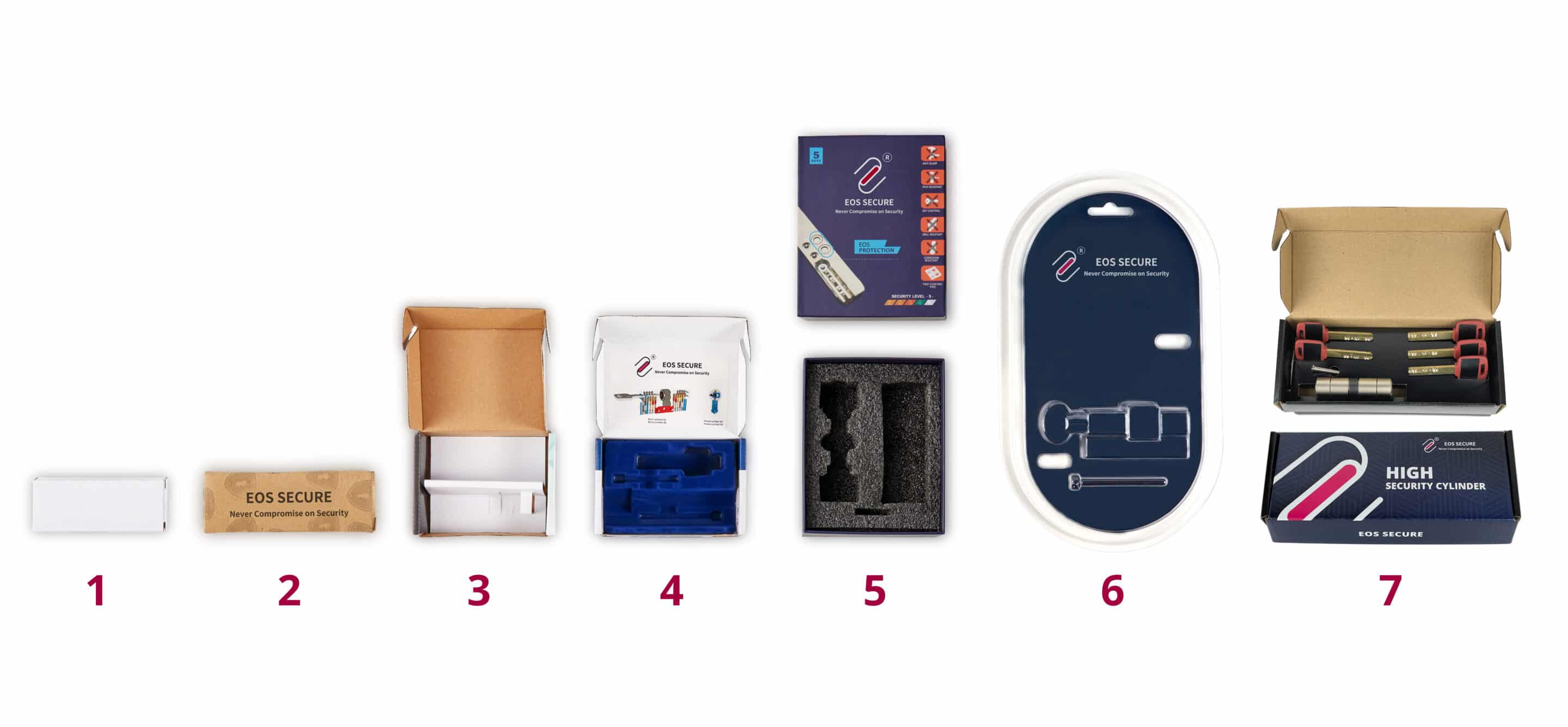

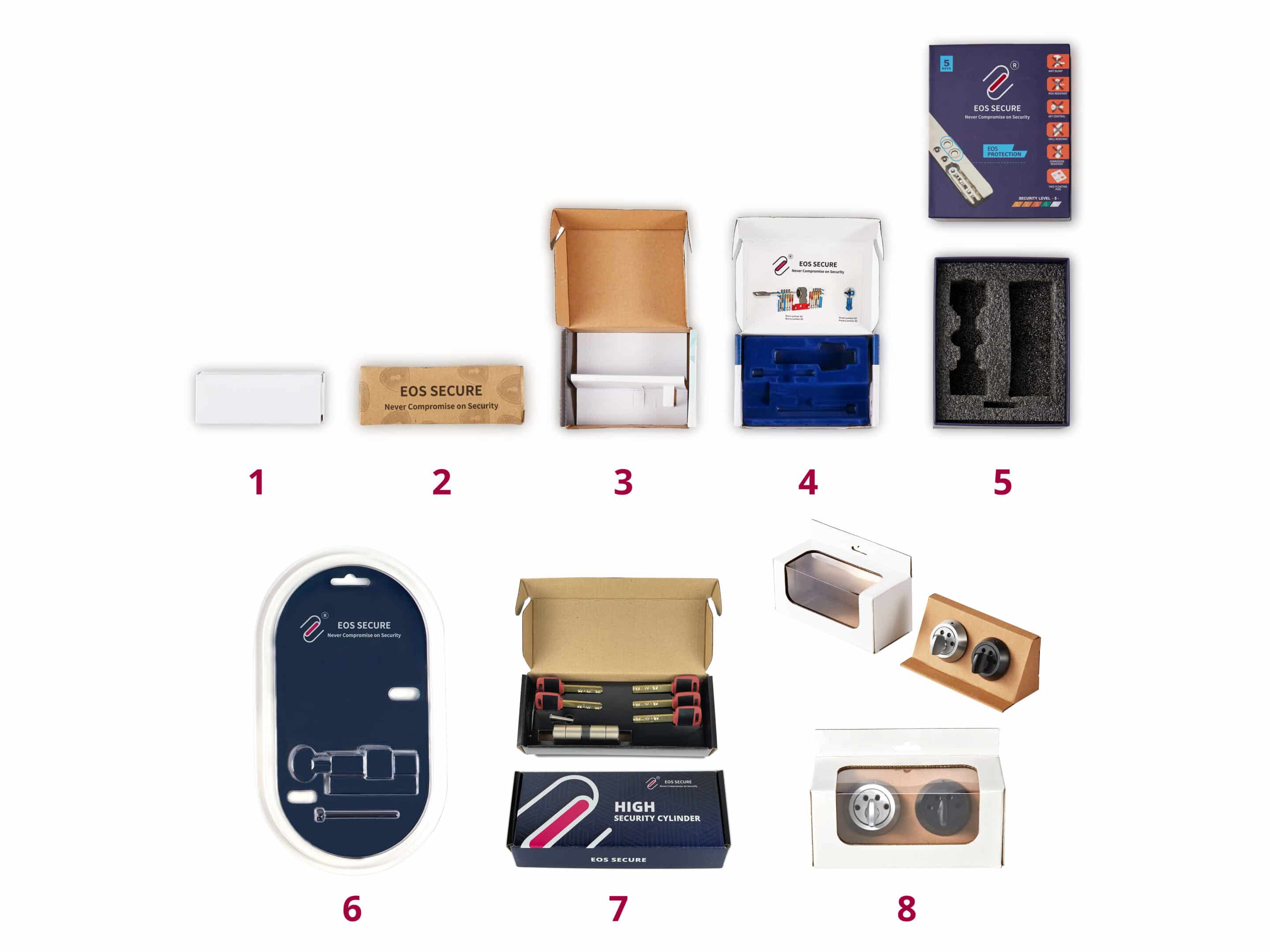

Different Packing Ways

1. EOS standard white box packing.
2. Based on white box dimension, customized logo kraft box, color box is available.
3. Color box for divide to packing the cylinder and key.
4. Middle range luxury color box, inner plastic part made from pile coating.
5. High range Luxury color gift box with foam.
6. Eos standard blister packing, 100 PCS MOQ.
7. Color box for middle range security cylinder.

Develop New Lock Cylinders Designs Patents From Concept to Commercialization

Our R&D team will work with you from the start to fully understand your needs and expectations. They may also recommend helpful design ideas and suggest manufacturing options.

From Existing Models

Get existing designs or make mild customization

Sourcing from our existing models or making small customization changes based on above wide-ranged customization options. You will find a good choice on our product pages – many models are unique to EOS Secure. You can enjoy the low MOQ and fast delivery time advantages. If you can’t see what you want, please ask.

Creating Your Own

Develop new models and get R&D support

If you plan to start a new project and order large quantities, it may be worth investing in a unique lock cylinder design. We will sign the confidential cooperation agreement with you to protect your profit. We have the state of the art machines, strict quality control, and a professional manufacturing process, advise on appropriate design options and ensure the technical feasibility of the project.

Make Your Customized Lock Cylinders Step By Step

Master key system cylinders and Security cylinders manufacturer

eos secure security cylinders

01

Identifying Your Lock Cylinder Idea

Whether we are working from a sketch, using a sample of another lock cylinder, or just discussing your ideas, we will be working patiently with you to comprehend your exact requirements.

Our R&D team will further investigate your requirements, generate ideas that suit your original brief and consider a feasible price and manufacturing alternatives and improvements to aid production and filling.

02

Customized Lock Cylinder Drawing

Once the lock cylinder idea design has been created, the drawings will be issued to define measurable dimensions of the cylinder while observing the manufacturing craft limits. We need to validate the technical specification prior to production at this stage.

At the same time, we will send to our customers to double-check the drawings and functions. Our production team will start to check the feasibility of producing samples.

eos security cylinder factory
eos security lock cylinder factory

03

Making Customized Lock Cylinder Samples/Prototypes

When the drawings are confirmed, we will move to the sampling stage. Depending on the customization scale, our sample production team will start to produce corresponding parts and prototypes, and some molds and toolings may be made simultaneously. Finally, our R&D team engineer will assemble all the pieces as a sample at the assembly line and make a detailed sample report to our customer.

Ask for a consultant

04

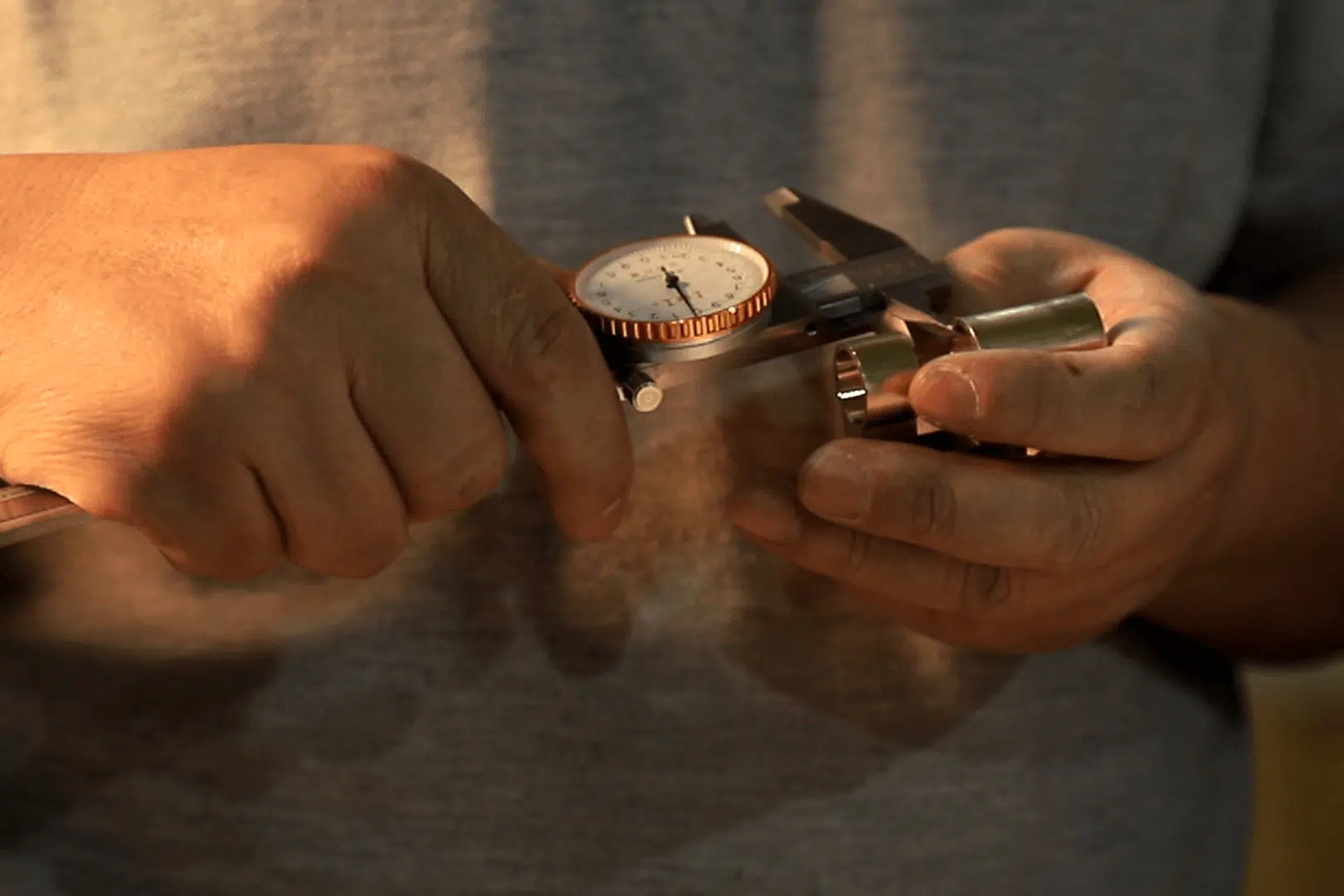

Customized Lock Cylinder Mass Production and Quality Control

Once the customers approve the samples/prototypes, the mass production manufacturing process begins. Based on the drawings, our Quality Control team will design and produce tools to check the precision of all the parts of the new customized lock cylinder. Through the cooperation between the production manufacturing team and quality control team, the first few samples from mass production are finished. These samples will be sent to do cycle-tests, anti-drilling tests and to make sure the new customized lock cylinder passes the quality standard.

eos lock cylinder factory china

Make Your Customized Lock Cylinders Step By Step

Master key system cylinders and Security cylinders manufacturer

eos secure security cylinders

01

Identifying Your Lock Cylinder Idea

Whether we are working from a sketch, using a sample of another lock cylinder, or just discussing your ideas, we will be working patiently with you to comprehend your exact requirements.

Our R&D team will further investigate your requirements, generate ideas that suit your original brief and consider a feasible price and manufacturing alternatives and improvements to aid production and filling.

eos secure lock cylinder

02

Customized Lock Cylinder Drawing

Once the lock cylinder idea design has been created, the drawings will be issued to define measurable dimensions of the cylinder while observing the manufacturing craft limits. We need to validate the technical specification prior to production at this stage.

At the same time, we will send to our customers to double-check the drawings and functions. Our production team will start to check the feasibility of producing samples.

eos lock cylinder machine

03

Making Customized Lock Cylinder Samples/Prototypes

When the drawings are confirmed, we will move to the sampling stage. Depending on the customization scale, our sample production team will start to produce corresponding parts and prototypes, and some molds and toolings may be made simultaneously. Finally, our R&D team engineer will assemble all the pieces as a sample at the assembly line and make a detailed sample report to our customer.

Ask for a consultant

eos lock cylinder quality control

04

Customized Lock Cylinder Mass Production and Quality Control

Once the customers approve the samples/prototypes, the mass production manufacturing process begins. Based on the drawings, our Quality Control team will design and produce tools to check the precision of all the parts of the new customized lock cylinder. Through the cooperation between the production manufacturing team and quality control team, the first few samples from mass production are finished. These samples will be sent to do cycle-tests, anti-drilling tests and to make sure the new customized lock cylinder passes the quality standard.
