Types of American Standard Lock Cylinders

Master key system cylinders and Security cylinders manufacturer

American standard lock cylinders usually mean mortise cylinders, KIK or KIL (key-in-knob or key-in-lever) cylinders, deadbolt cylinders, rim cylinders, Profile cylinders, RIMO cylinders, SFIC (small format interchangeable cores) related locks. EOS-secure mainly focuses on high-precision and high-security parts of American standard lock cylinders.

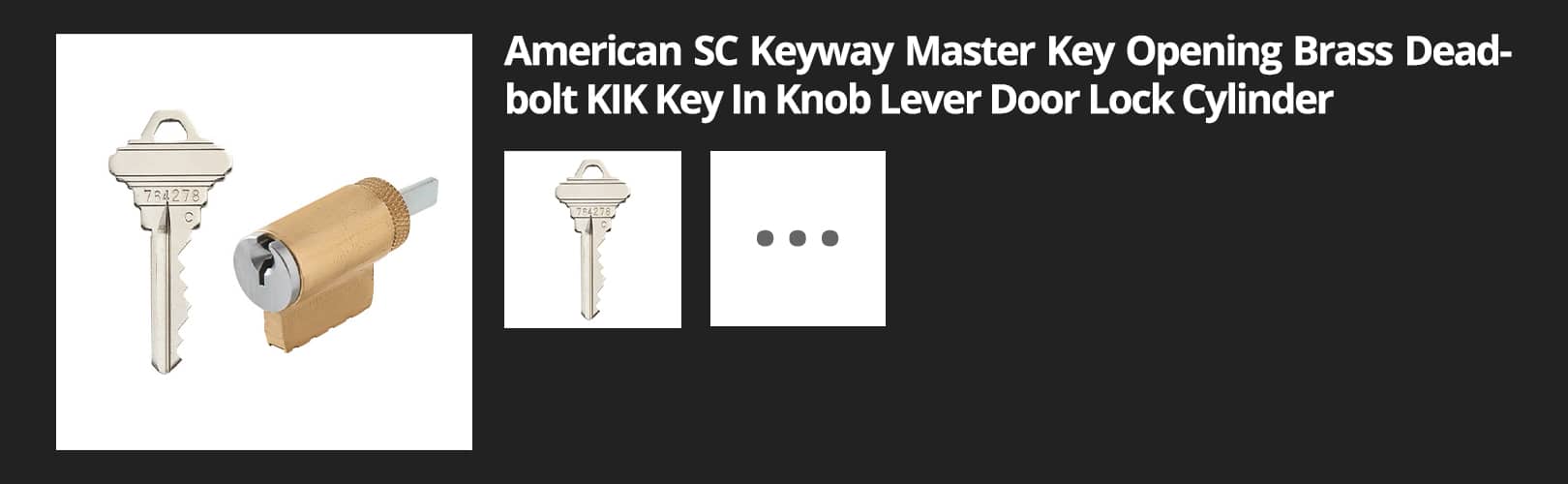

KIK/KIL/Deadbolt cylinder

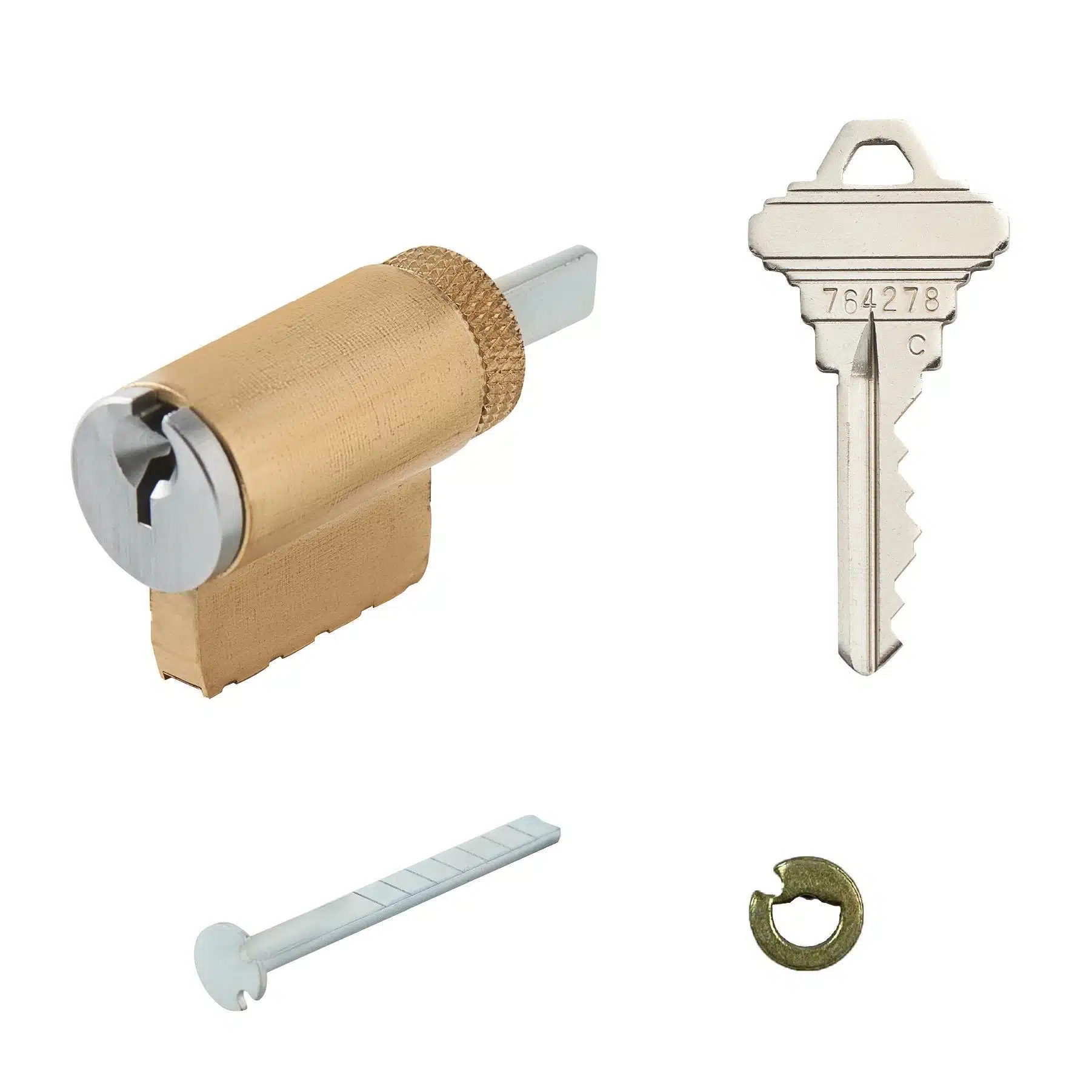

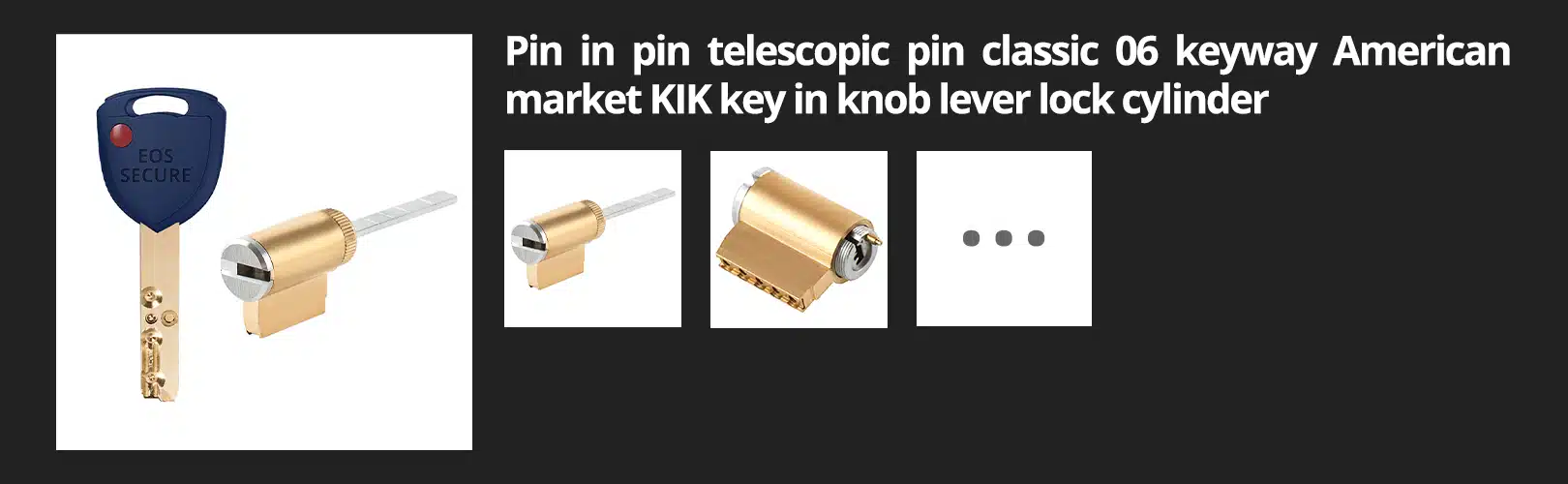

KIK / KIL / Deadbolt cylinder

This cylinder is commonly used on commercial door knob sets, lever sets, and deadbolt locks.

Changing the packed tailpieces can change the cylinder to KIK, KIL, or deadbolt cylinder.

This lock cylinder is equipped with the famous KW keyway, SC keyway, S keyway, or customized restricted keyway.

It can be done with various surface finishes, like US26D, US3, 10B, etc.

It’s available to make the master key system on this cylinder. For pins, key blanks, and other accessories, please click here for more information.

American-lock-cylinder
American-lock-cylinder
Mortise cylinder

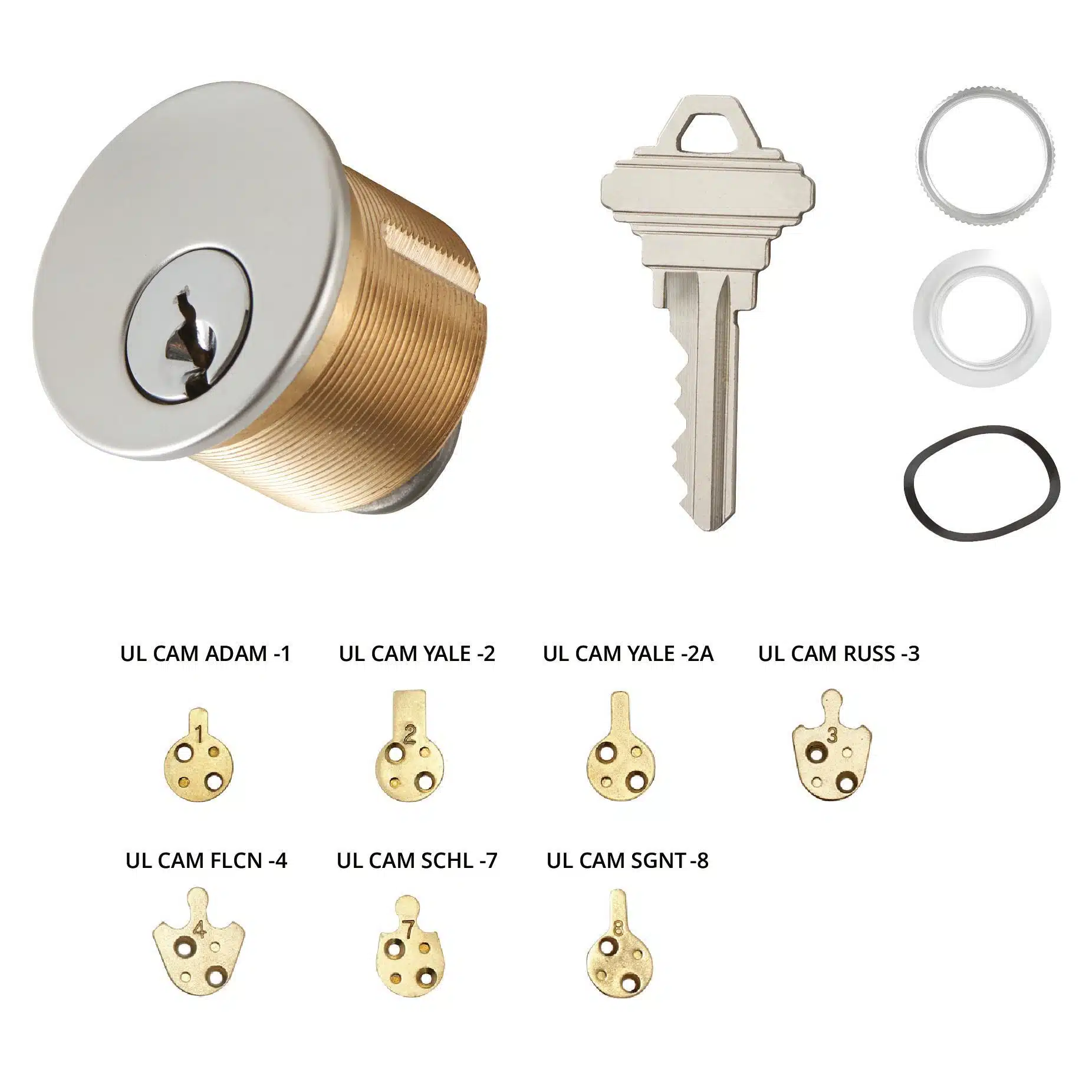

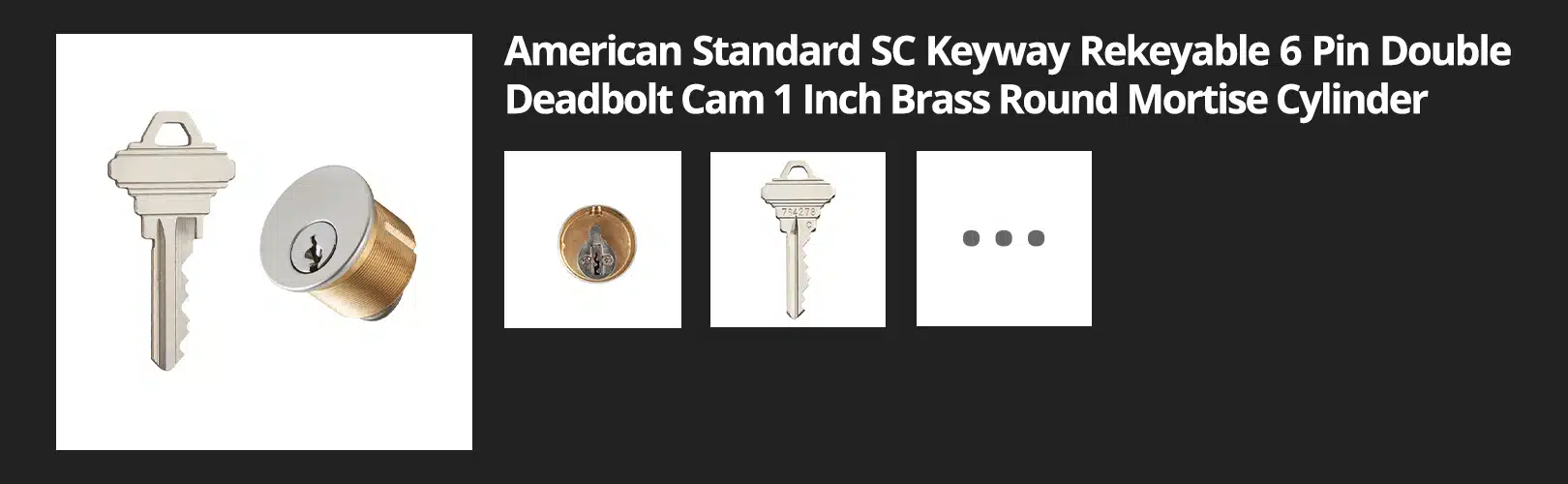

Mortise cylinder

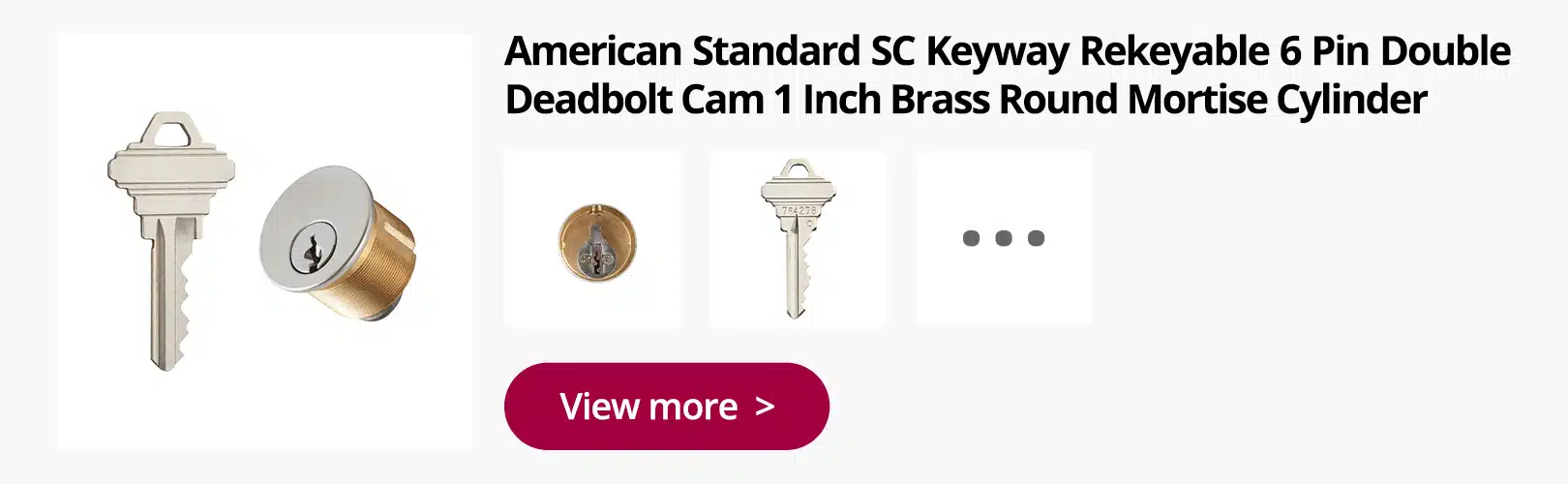

The mortise cylinder is threaded into the mortise lock, secured by a side screw through the edge of the mortise lock.

Changing the packed cams can change the cylinder to fit different brands of mortise locks.

Depending on the door thickness, the mortise cylinder can be in various lengths, such as 1″, 1-1/8″, 1-3/8″, 1-1/4″, 1-1/2″, etc.

This lock cylinder is equipped with the famous KW keyway, SC keyway, S keyway, 06 keyway, or customized restricted keyway.

It can be done with various surface finishes, like US26D, US3, 10B, etc.

It’s available to make the master key system on this cylinder. For pins, key blanks, and other accessories, please click here for more information.

American-lock-cylinder
American-lock-cylinder
American-lock-cylinder
Rim cylinder

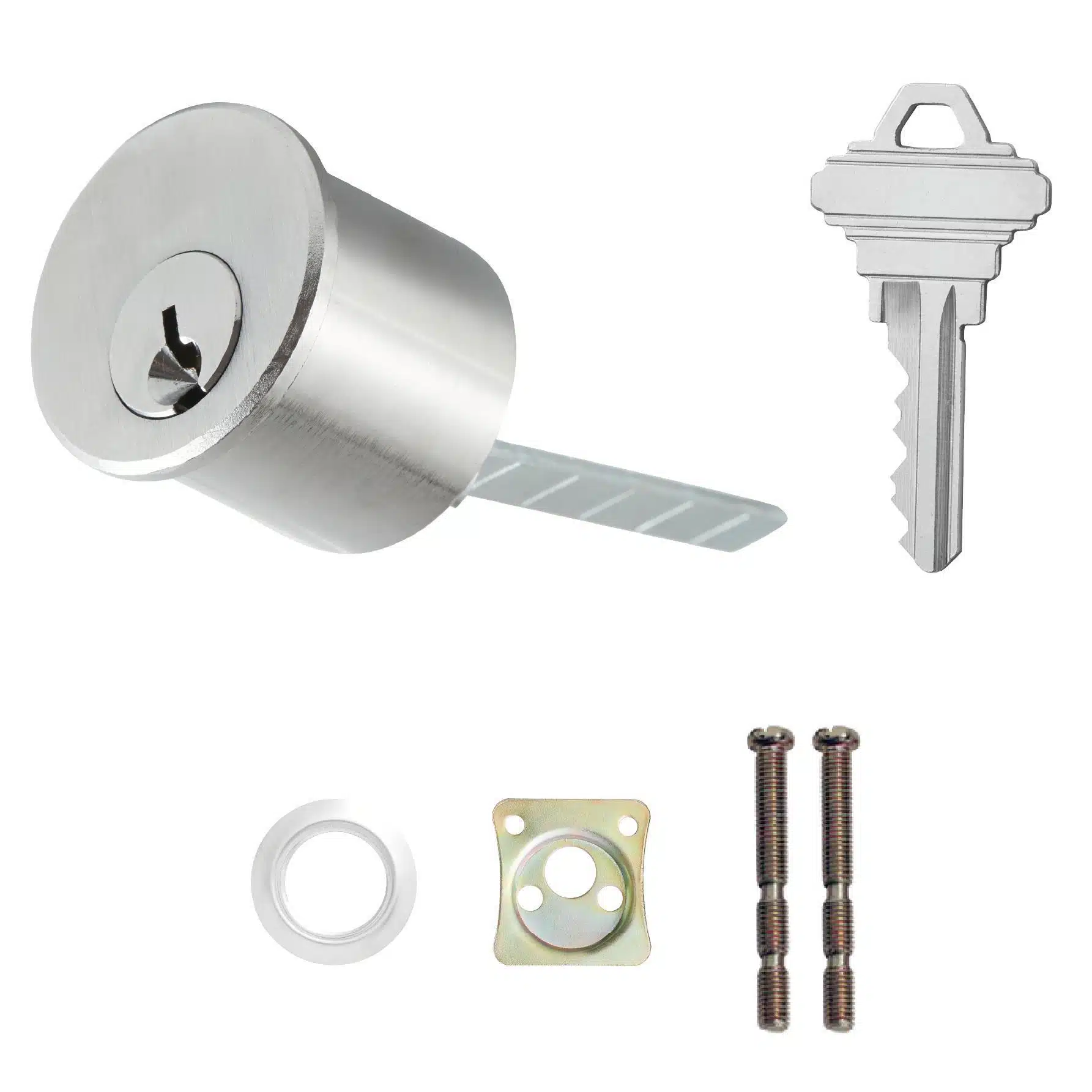

Rim cylinder

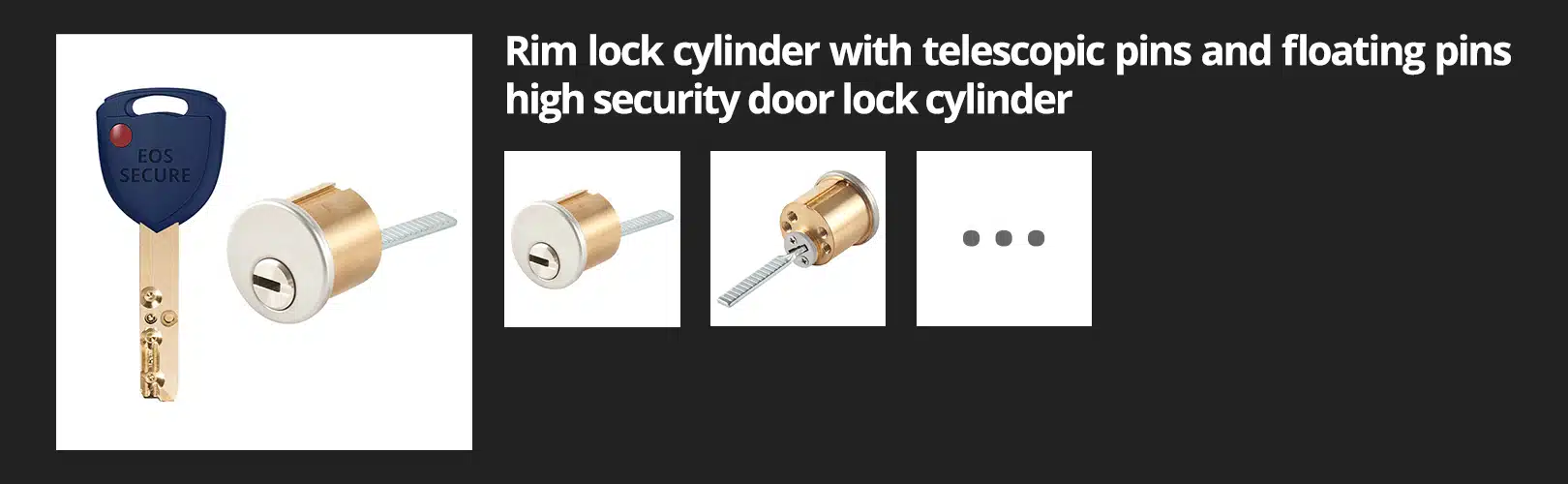

The rim cylinder mounted with sets of screws is commonly used on rim locks on garage doors and commercial exit and panic devices.

This lock cylinder is equipped with the famous KW keyway, SC keyway, S keyway, 06 keyway, or customized restricted keyway.
It can be done with various surface finishes, like US26D, US3, 10B, etc.

It’s available to make the master key system on this cylinder. For pins, key blanks, and other accessories, please click here for more information.

American-lock-cylinder
American-lock-cylinder
American-lock-cylinder
American-lock-cylinder

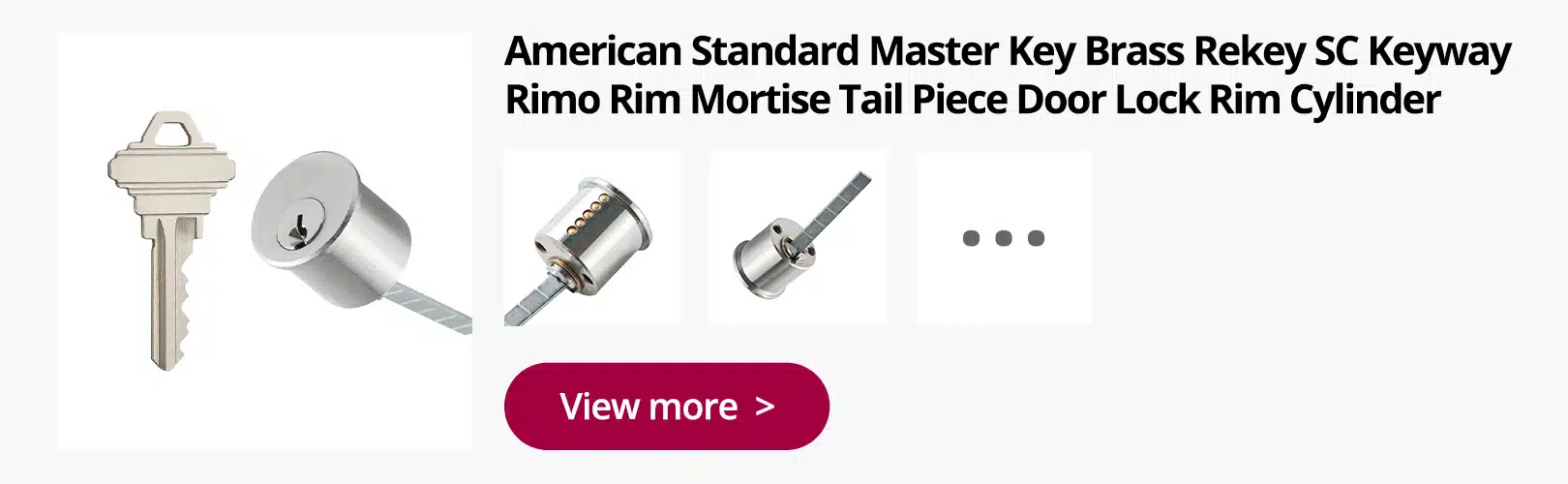

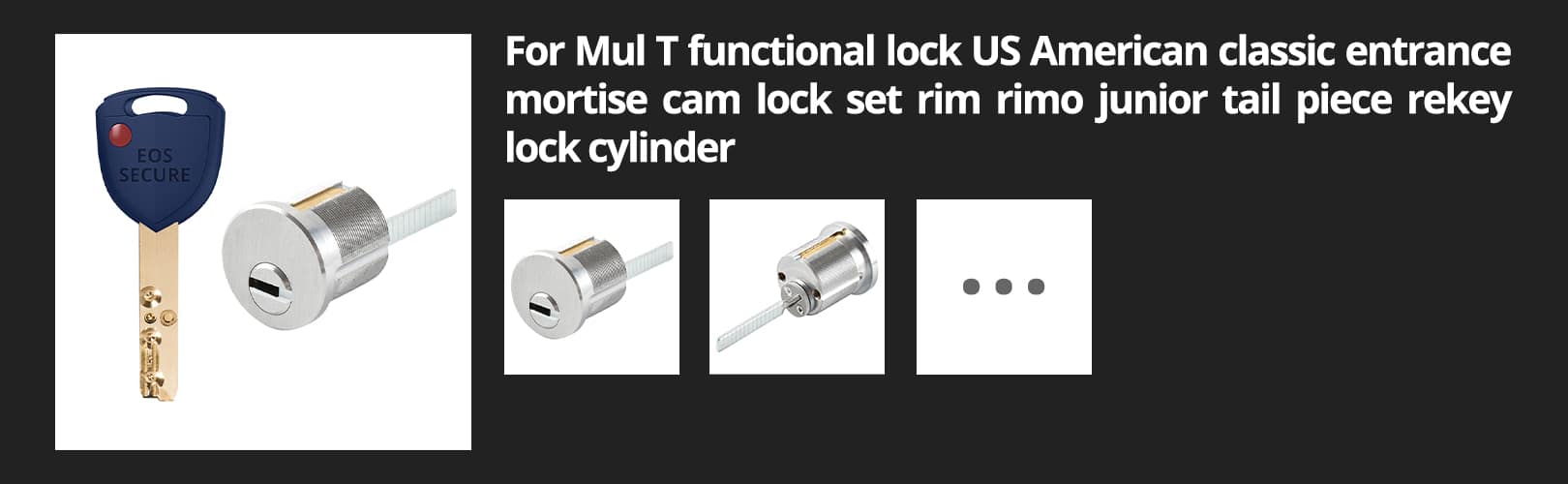

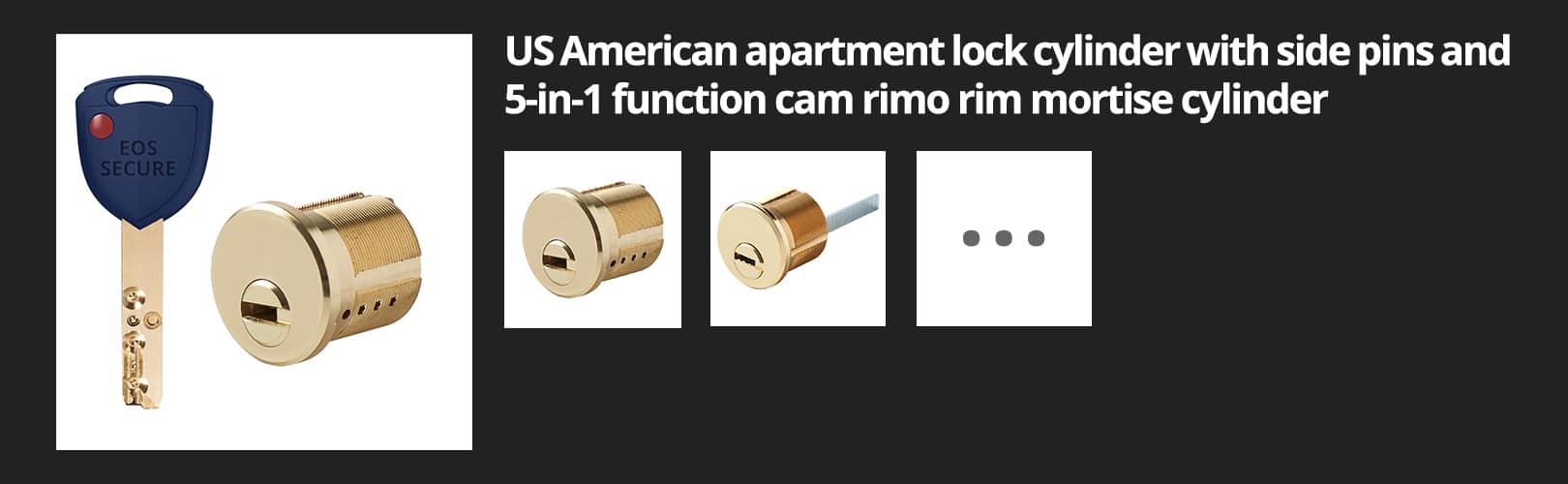

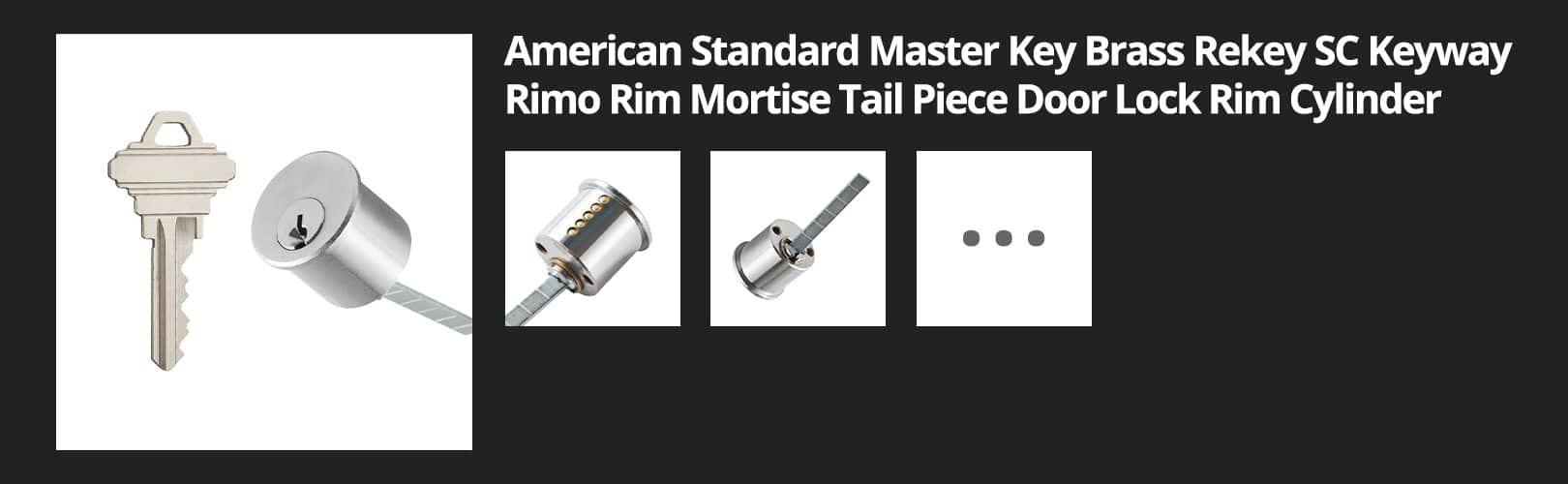

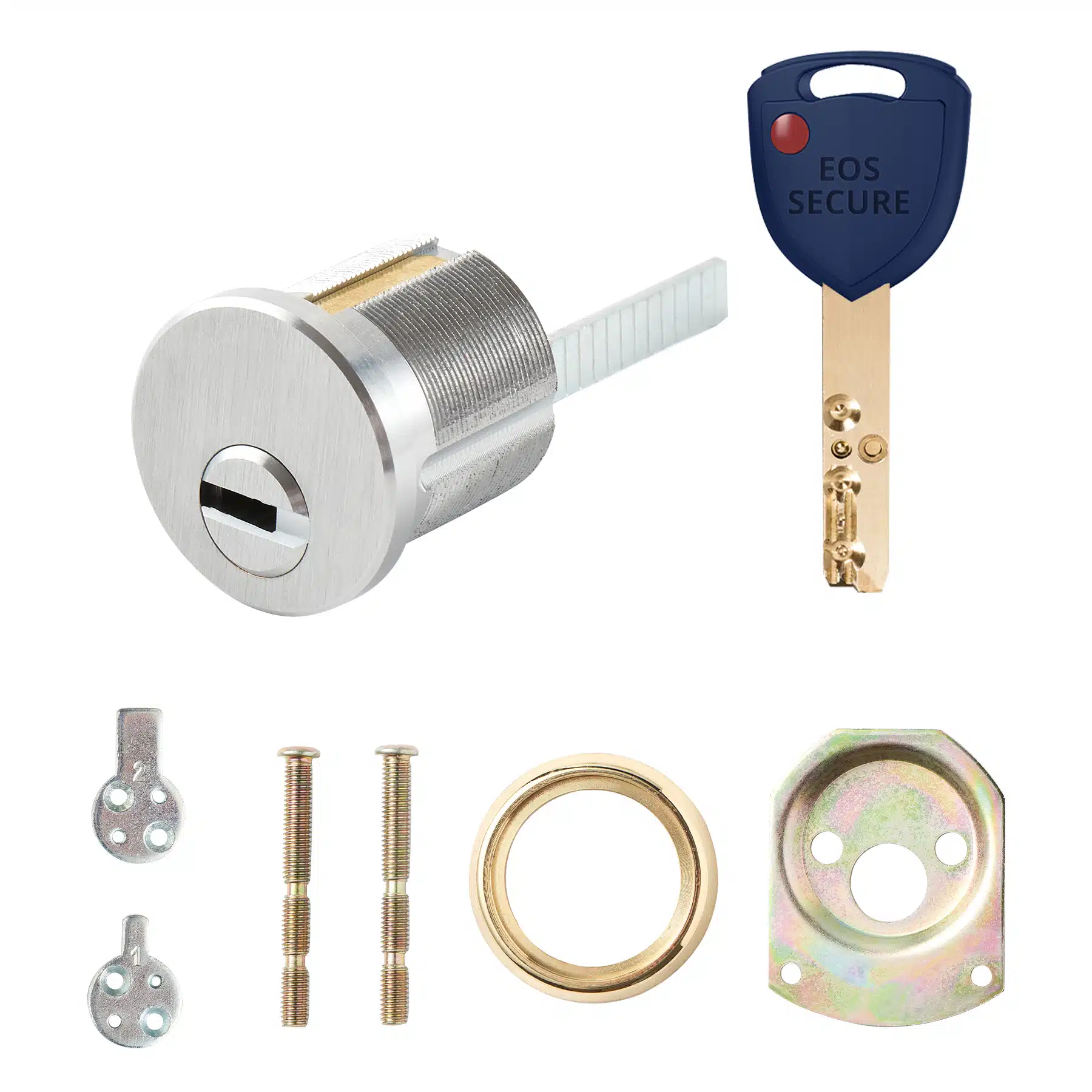

Rimo (rim and mortise) cylinder

The RIMO cylinder combines Rim and Mortise cylinders in one lock cylinder. There are threads and mounting screw holes on the RIMO cylinders. And changing the packed cam and tailpieces can change the cylinder to Rim or Mortise cylinder.

Depending on the door thickness, the mortise cylinder can be in various lengths, such as 1″, 1-1/8″, 1-3/8″, 1-1/4″, 1-1/2″, etc.

This lock cylinder is equipped with the famous KW keyway, SC keyway, S keyway, 06 keyway, or customized restricted keyway.

It can be done with various surface finishes, like US26D, US3, 10B, etc.

It’s available to make the master key system on this cylinder. For pins, key blanks, and other accessories, please click here for more information.

American-lock-cylinder

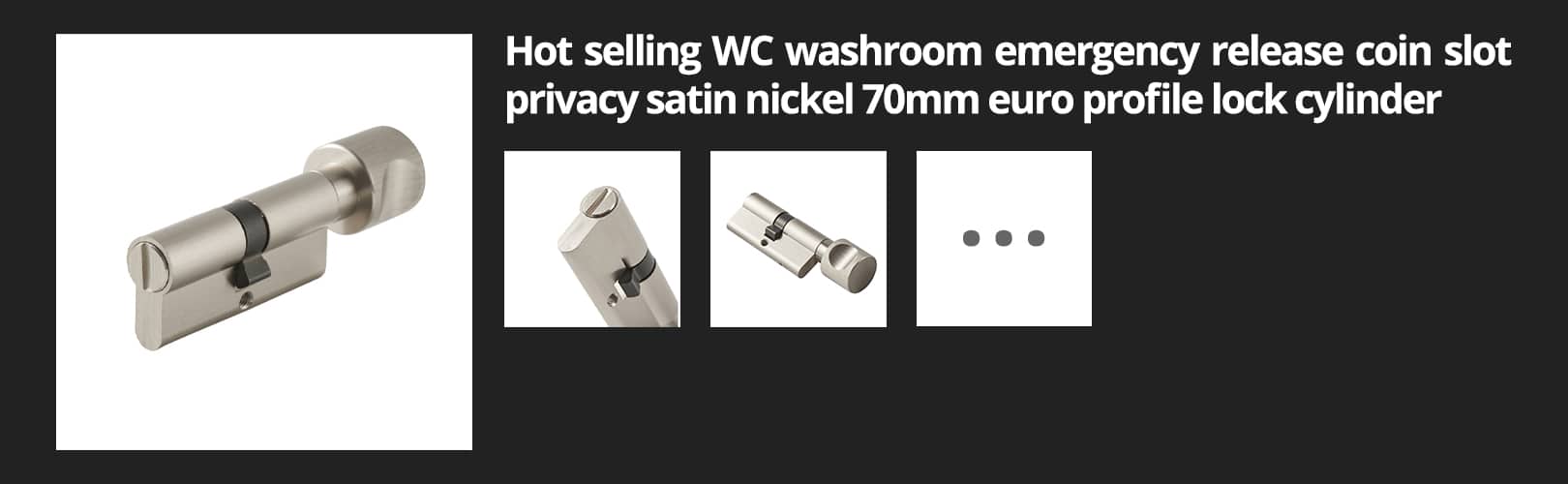

Profile cylinder

Profile cylinder

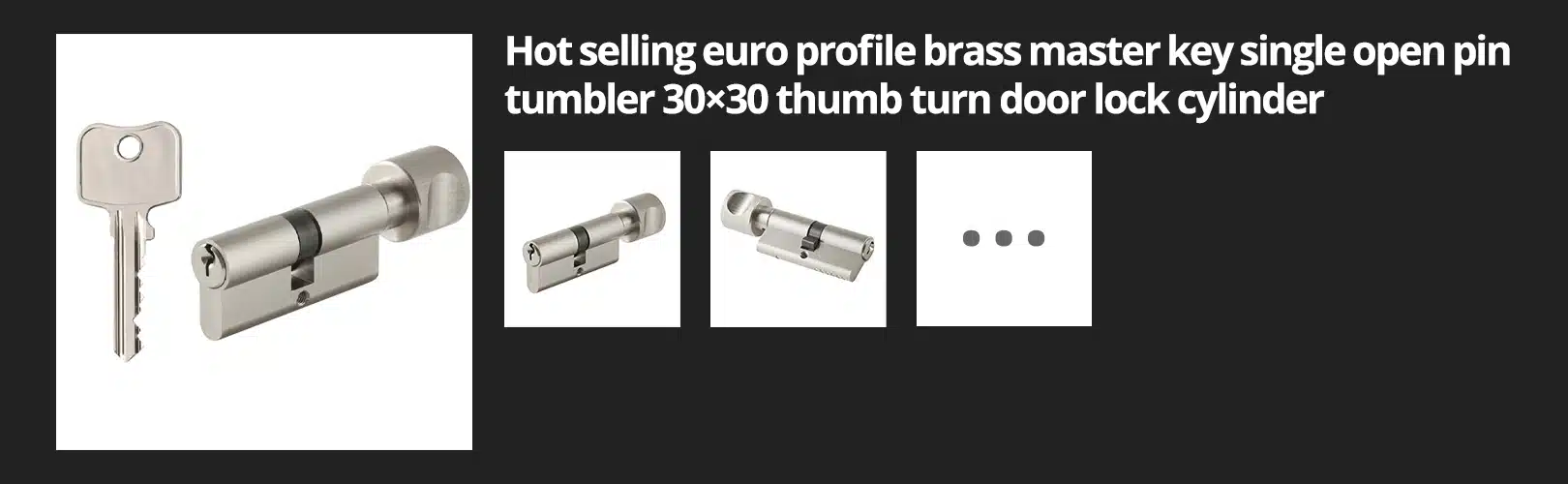

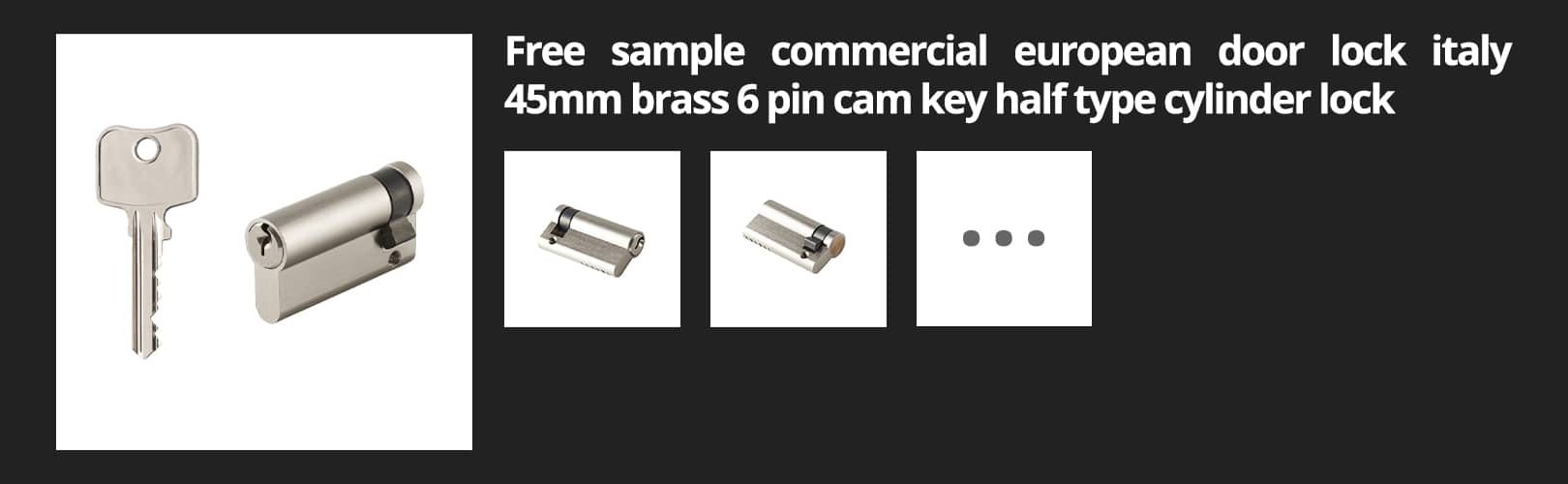

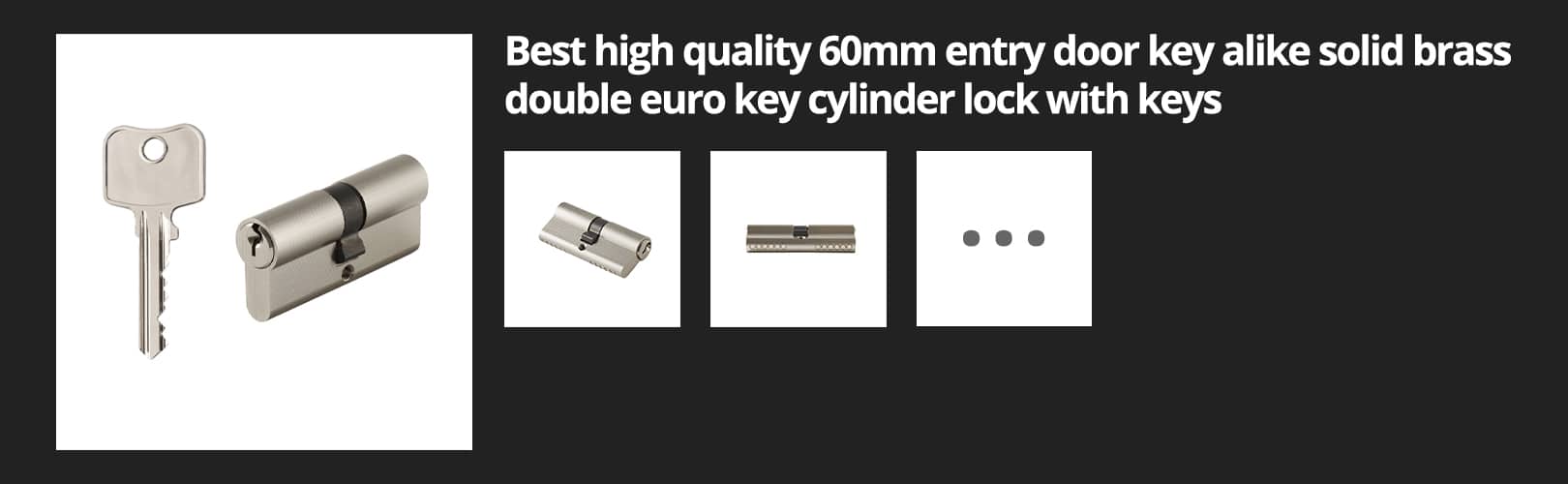

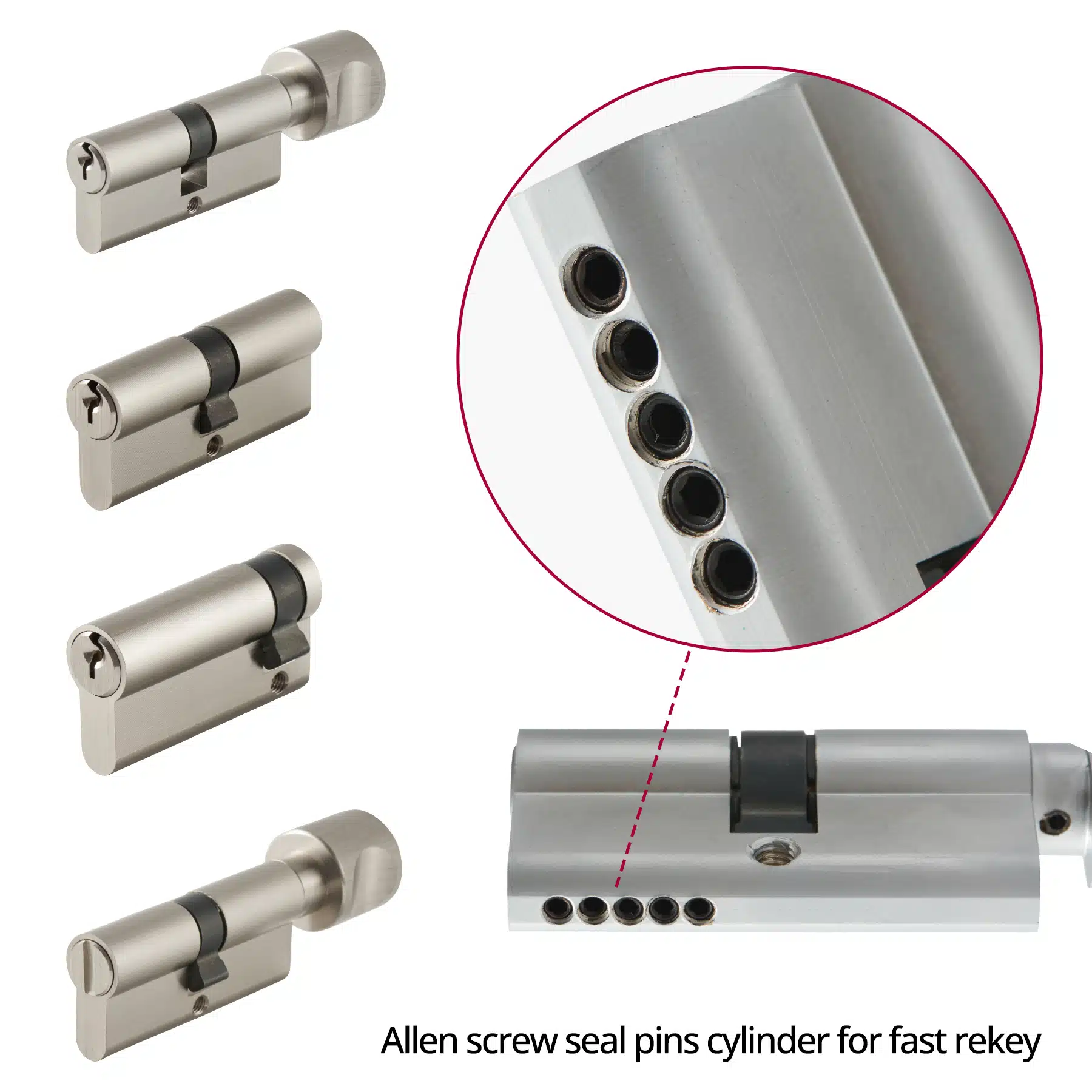

The profile cylinder means the European profile cylinder, including the thumb-turn type, single-sided key type, double-sided key type, and privacy type. Usually, the profile cylinders use Allen screws as sealed pins for easy re-pin.

Depending on the door thickness, the profile cylinder can be in various lengths, such as 70mm, 90mm, 45mm, etc.

This lock cylinder is equipped with the famous KW keyway, SC keyway, S keyway, 06 keyway, or customized restricted keyway.

It can be done with various surface finishes, like US26D, US3, 10B, etc.

It’s available to make the master key system on this cylinder. For pins, key blanks, and other accessories, please click here for more information.

American-standard-lock-cylinder
American-lock-cylinder
American-lock-cylinder
American-lock-cylinder
Small Format Interchangeable Core

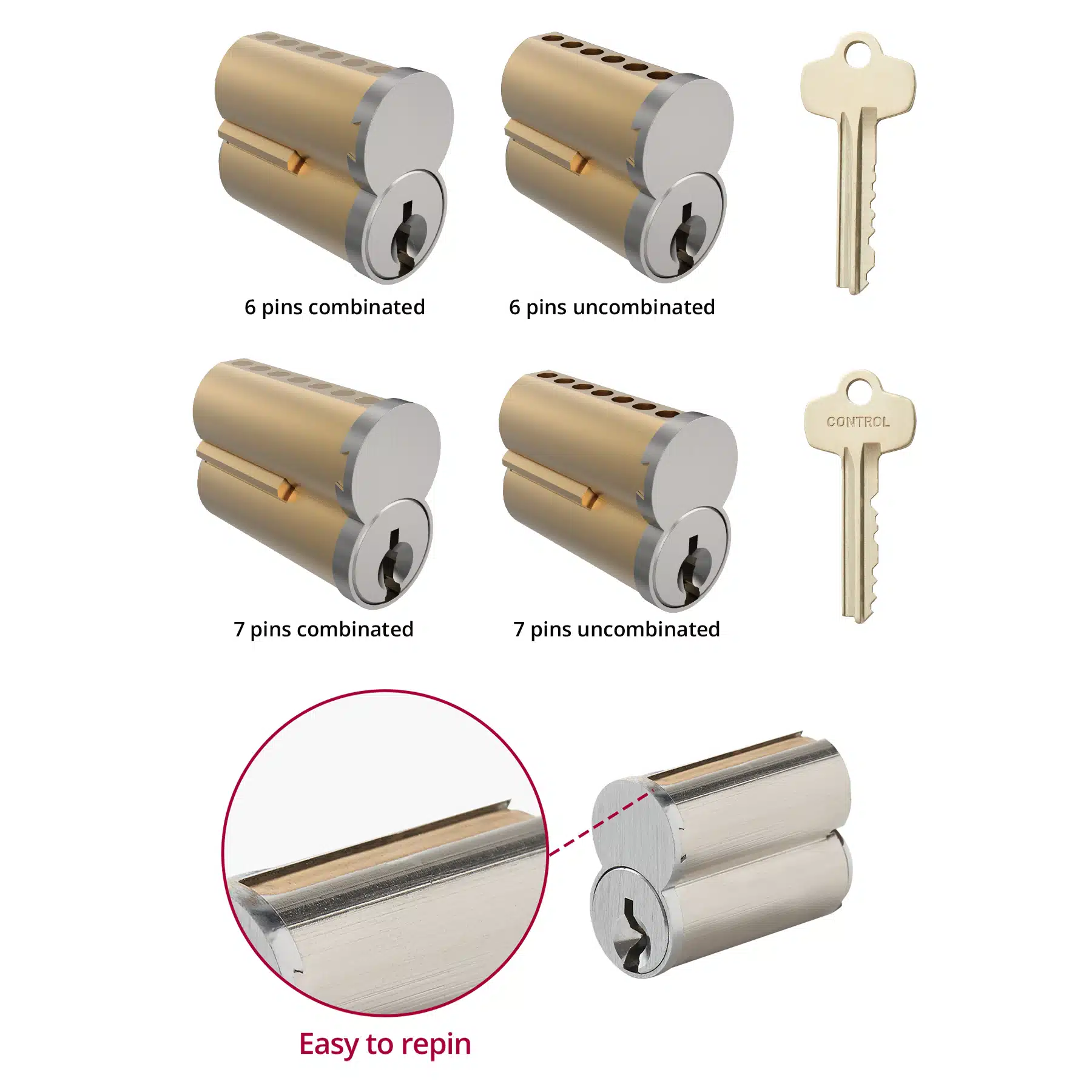

Small Format Interchangeable Core

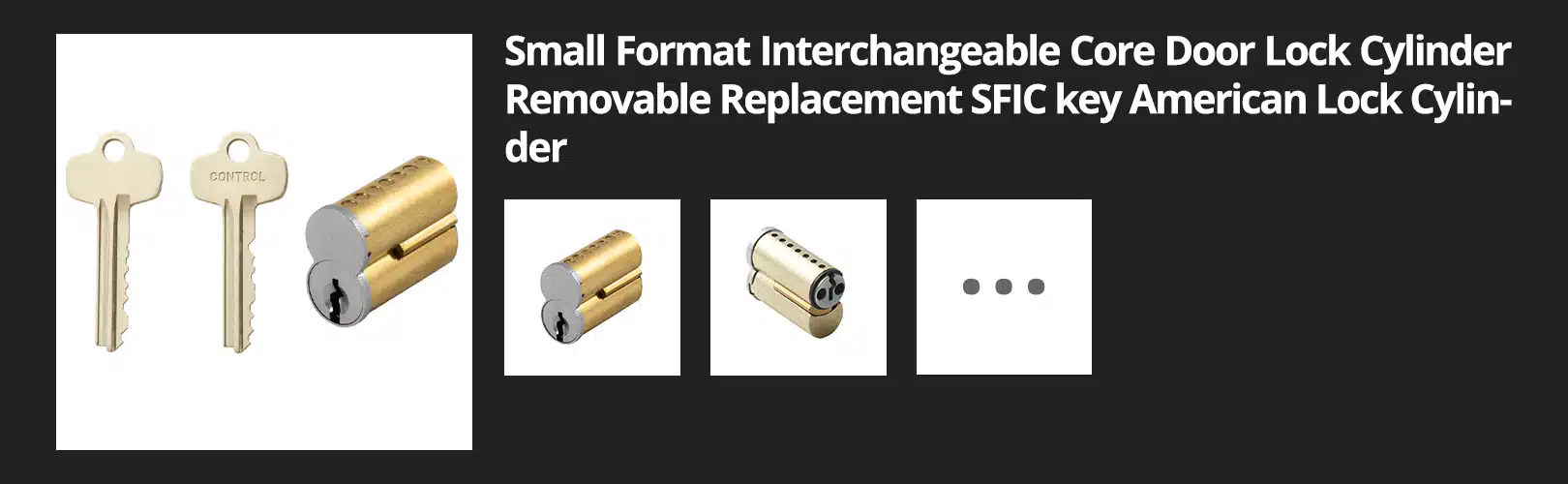

The small format interchangeable core (SFIC) is a core that suits the lock with pre-dilled IC core holes. It is widely used on commercial door hardware such as knob sets, lever sets, panic devices, mortise locks, etc. There are two types of keys for one SFIC core: the operating and control keys. And the control key is used to remove and replace the SFIC core.

Usually, there are two types of SFIC, six pins and seven pins. Some locksmiths are interested in the un-combinated SFIC so that they can do the re-pin themselves.

The SFIC is commonly equipped with BEST keyways or customized restricted keyways.

It can be done with various surface finishes, like US26D, US3, 10B, etc.

It’s available to make the master key system on this cylinder. For pins, key blanks, and other accessories, please click here for more information.

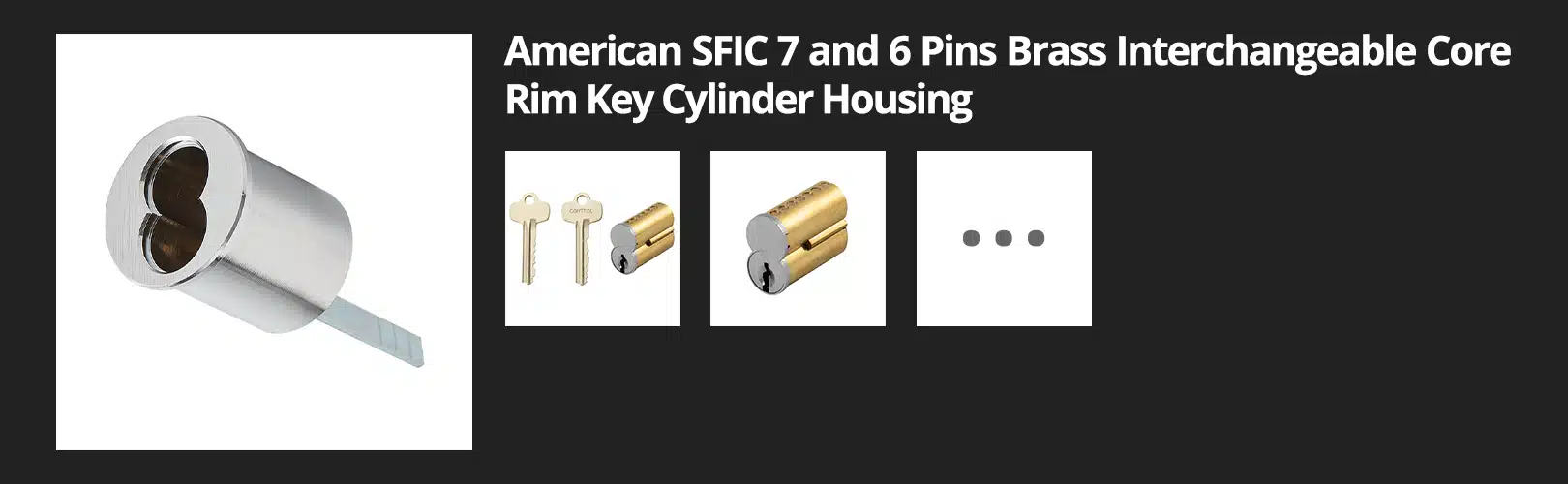

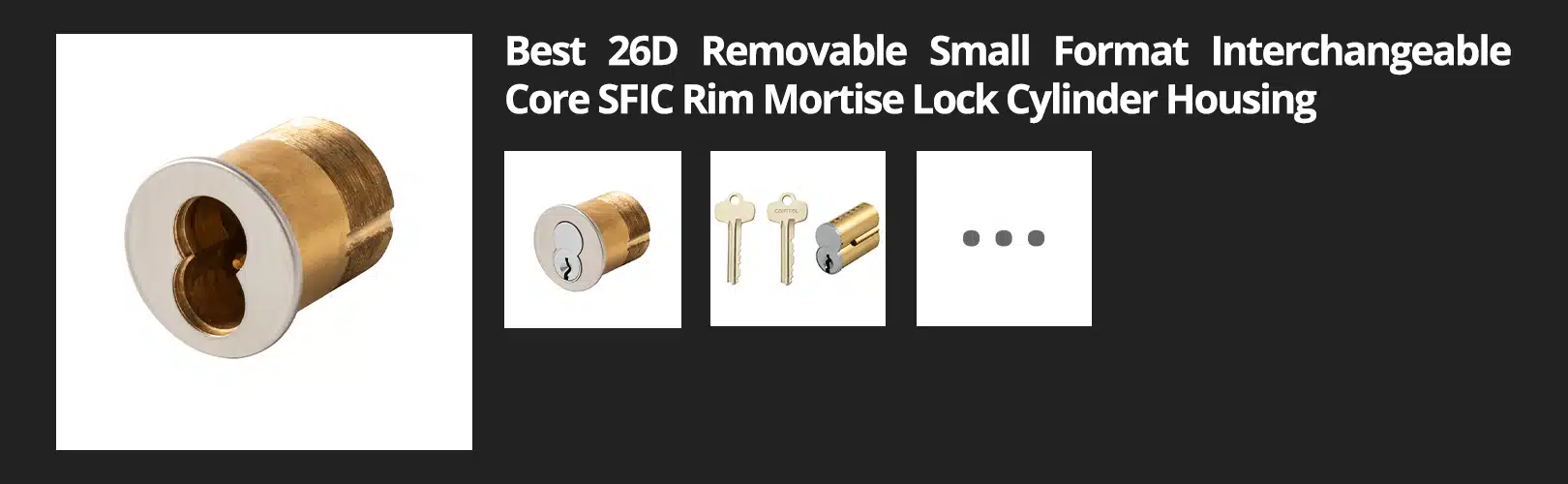

EOS-secure also produces the SFIC mortise cylinder housing and rim cylinder housing. Contact us for more options.

American-lock-cylinder
American-lock-cylinder
American-lock-cylinder

Can’t Find Ideal Lock Cylinder Manufacturer for Your Business?

We provide custom solutions to all our customers and offer free samples that you can take advantage of.

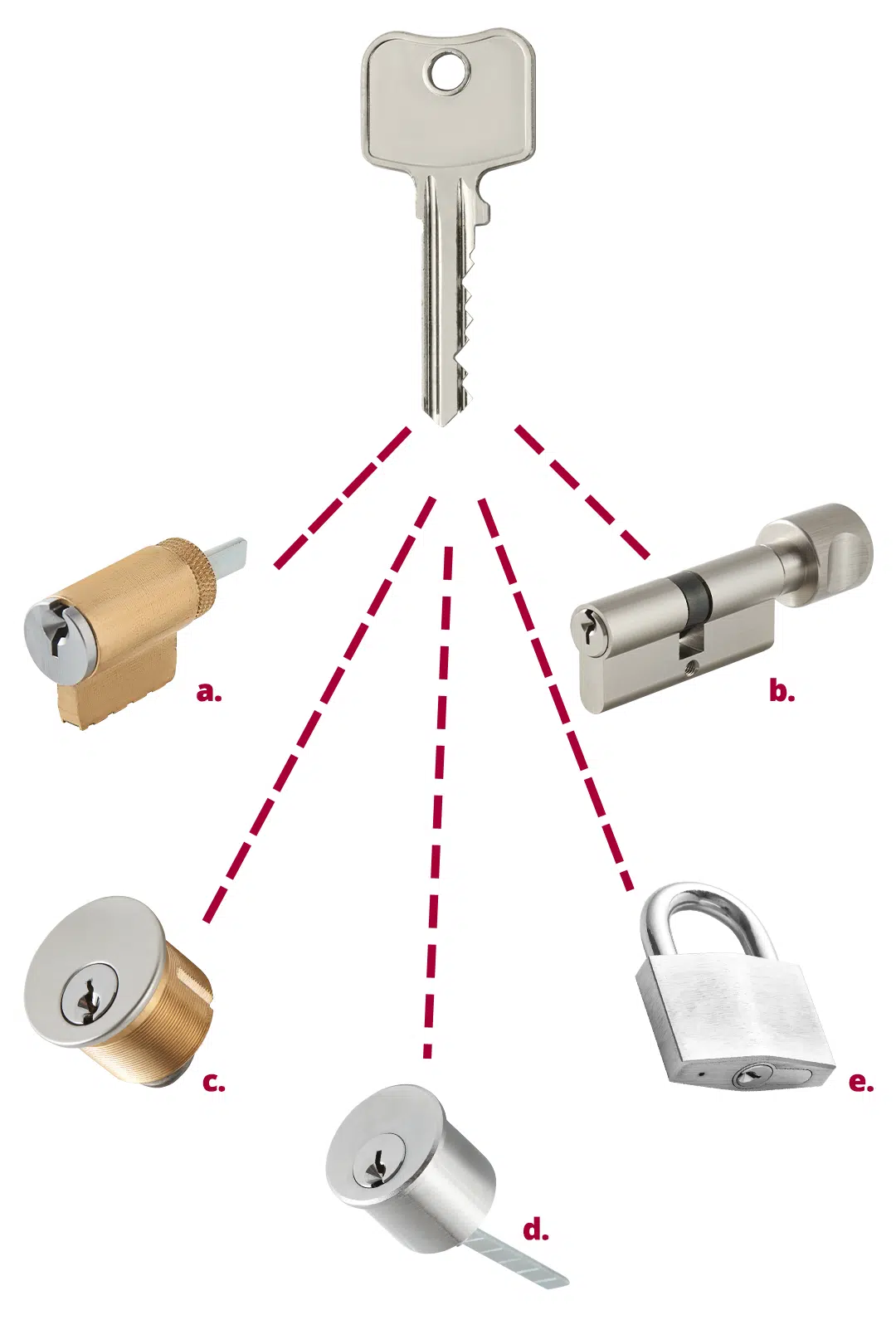

One Key Master Key System

EOS-Secure features a one-key-master-key system consisting of Europe profile cylinders, American standard cylinders (KIK, mortise, Rim cylinders), and Padlocks.
Because nowadays, there are different types of locks in one building, and to increase convenience and efficiency, people need a one-key-master-key system.

Accessories Supply

EOS Secure supplies the all-around accessories for lock cylinders that you need.

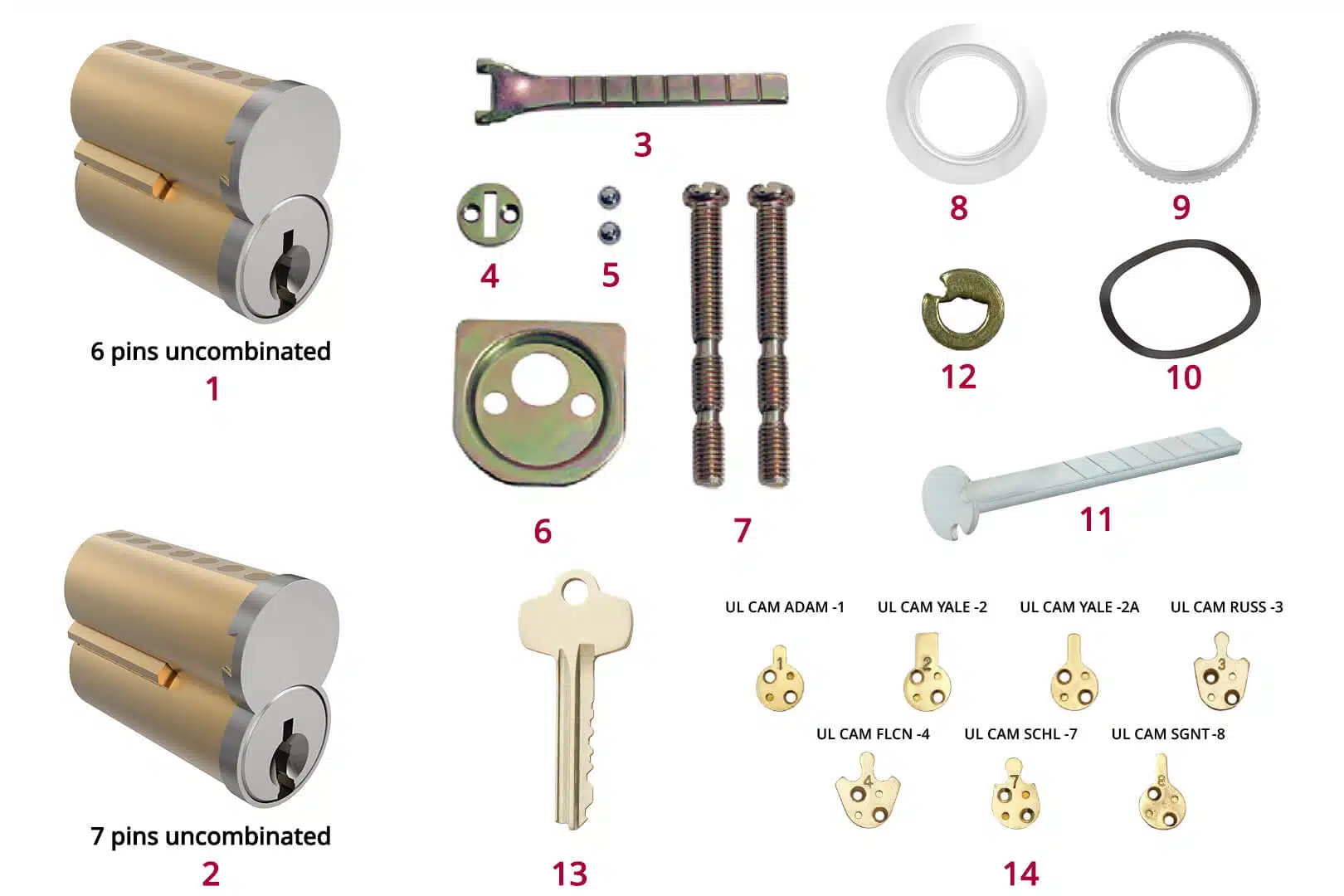

lock cylinder sfic and tailpiece

Accessories

1. 6 pins SFIC uncombinated core
2. 7 pins SFIC uncombinated core
3. Rimo cylinder accessories: tail piece
4. Rimo cylinder accessories: tail piece part
5. Rimo cylinder accessories: anti-drill steel balls
6. Rimo cylinder accessories: mounting plate
7. Rimo cylinder accessories: connecting screws
8. Rimo cylinder accessories: cylinder guard
9. Mortise cylinder aluminum ring
10. spring washer
11. KIK cylinder tail piece
12. KIK cylinder tail piece part
13. SFIC key blanks (different keyways)
14. Mortise cylinder cams

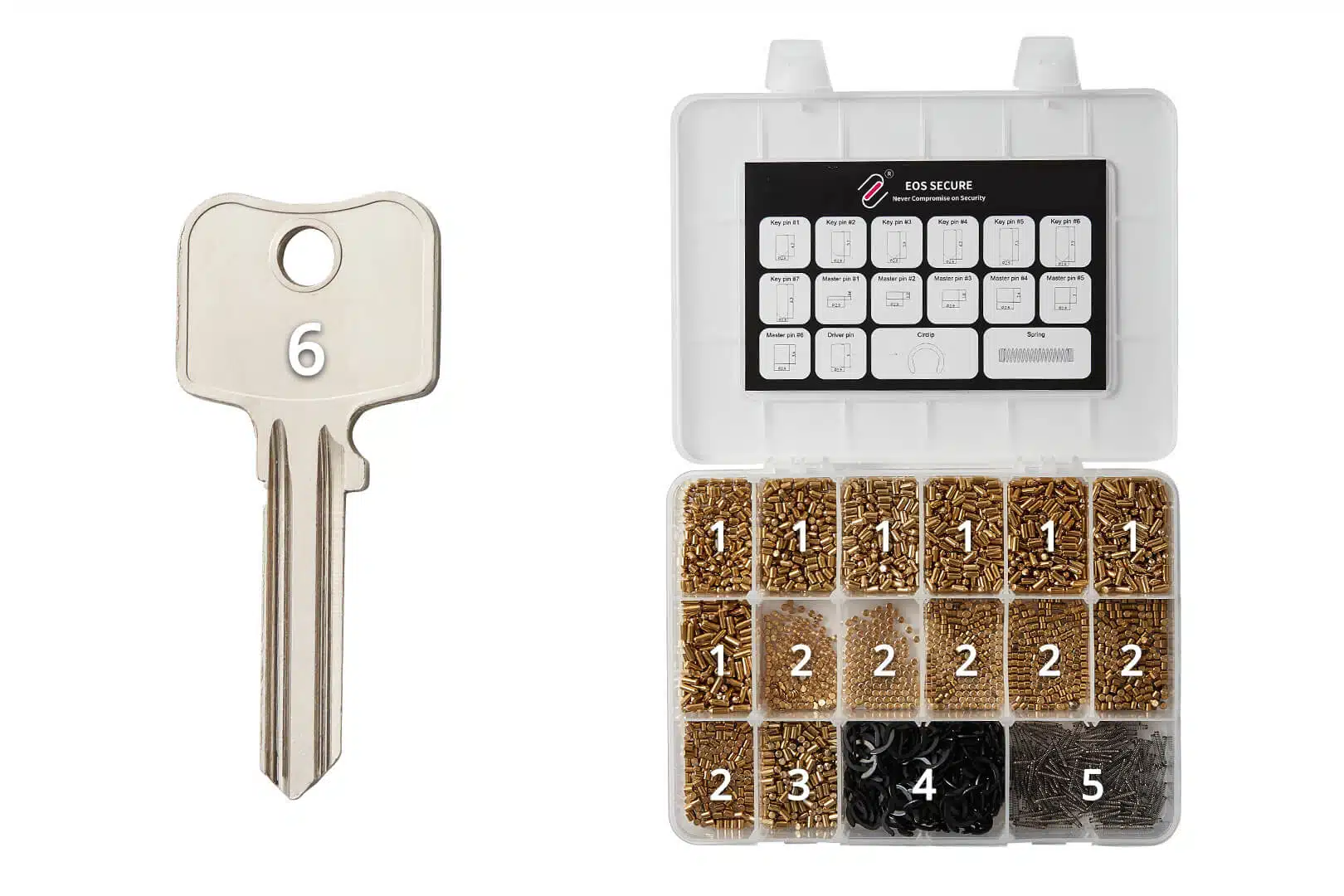

lock cylinder key blank and pining kit

Master Key System Lock Cylinder

Accessories

1. Different numbers of key pins
2. Different numbers of master pins
3. Driver pins
4. Circlips
5. Springs
6. Key blanks

Don’t want to assemble the master key system by yourself?

Consult us for pre-assemble master key system solution.
