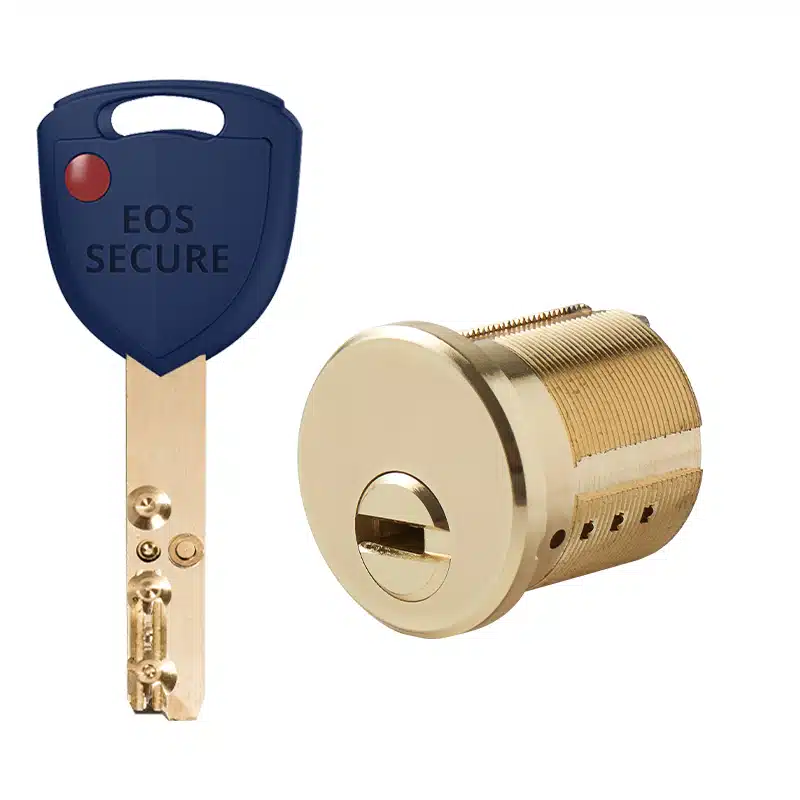

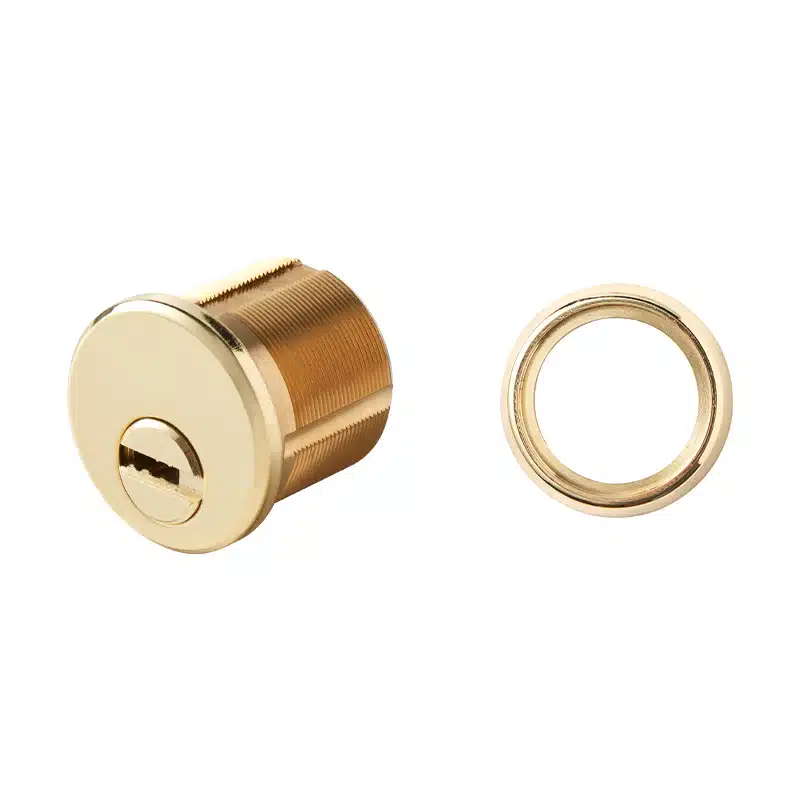

US American apartment lock cylinder with side pins and 5-in-1 function cam rimo rim mortise cylinder

This type of rim mortise cylinder adapts the pin-in-pin high-security technology to enhance the performance of anti-picking.

Master Key System

EOS secure are able to provide master key system for this cylinder. Meanwhile, if you have in-house locksmithes, you can assemble the master key system by using the accessories including master pins.
Learn more about our Master key system service.

Customization

EOS secure provides customization and design services to boost your business.

Learn more about customization.

Small order

EOS secure provides small MOQ on our existing models for start-up customers or mock up samples for projects.

Contact us to start>

master key system and security cylinders

10 years of experience of master key system and security cylinders

high precision lock cylinders

Tsugami CNC Swiss-type automatic Lathe machine to guarantee the precision

lock cylinders R&D

Support your customize and Innovative design

lock cylinders quality control

Implement the strictest quality control

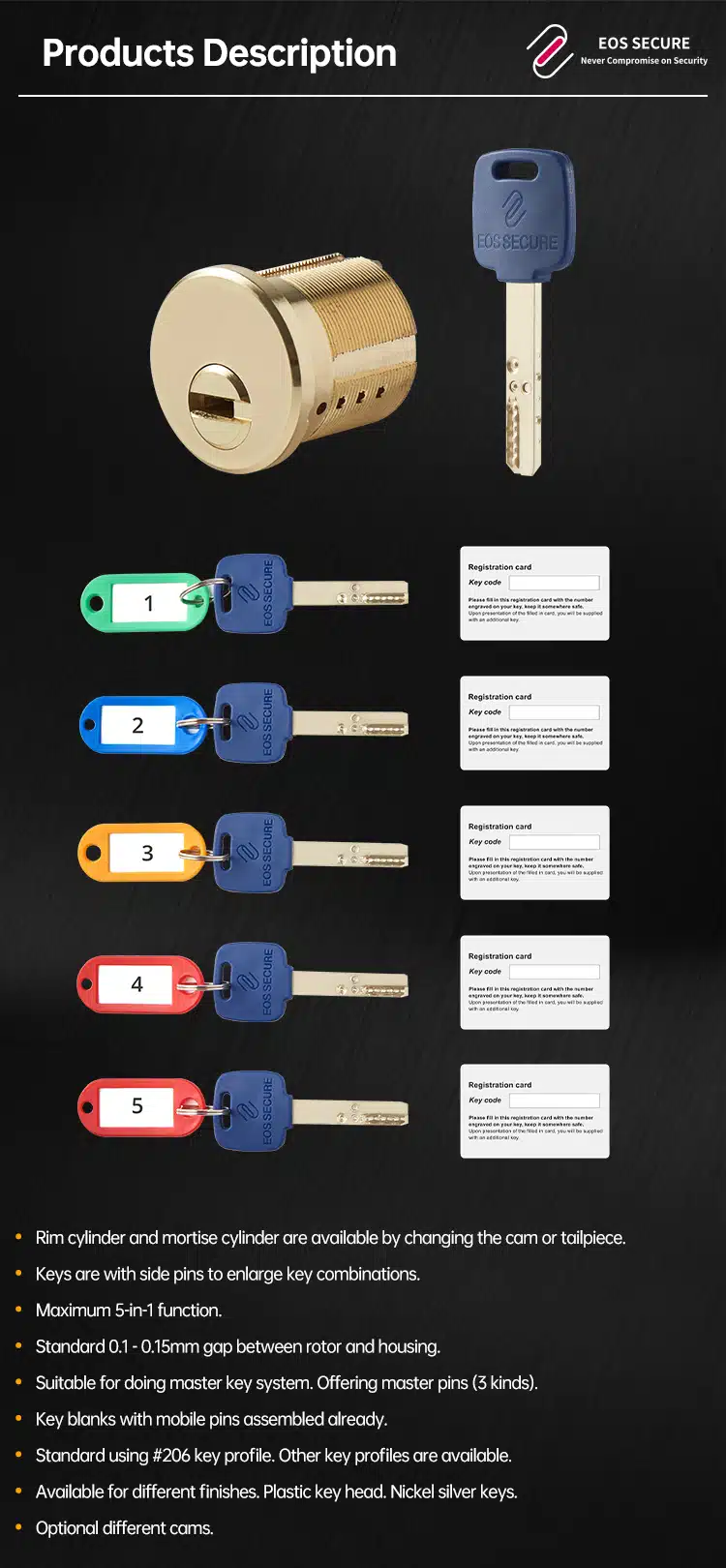

Rim cylinder and mortise cylinder are available by changing the cam or tailpiece.

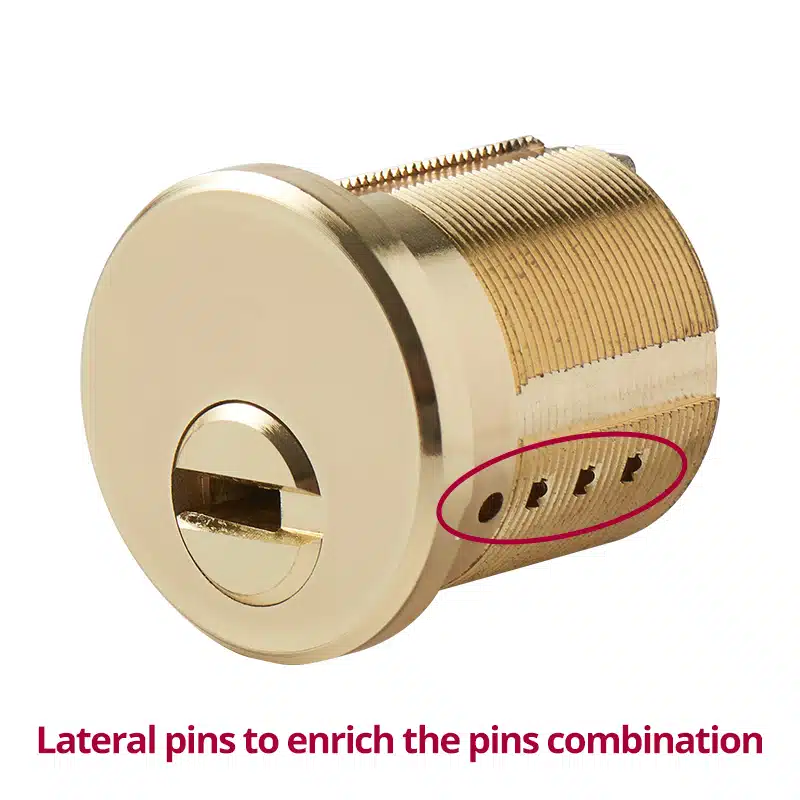

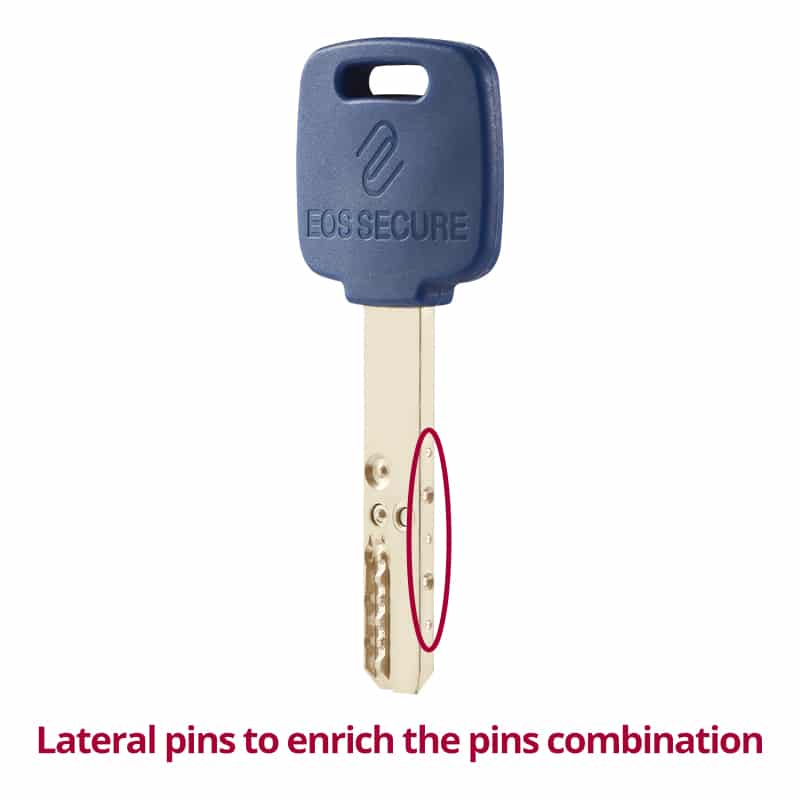

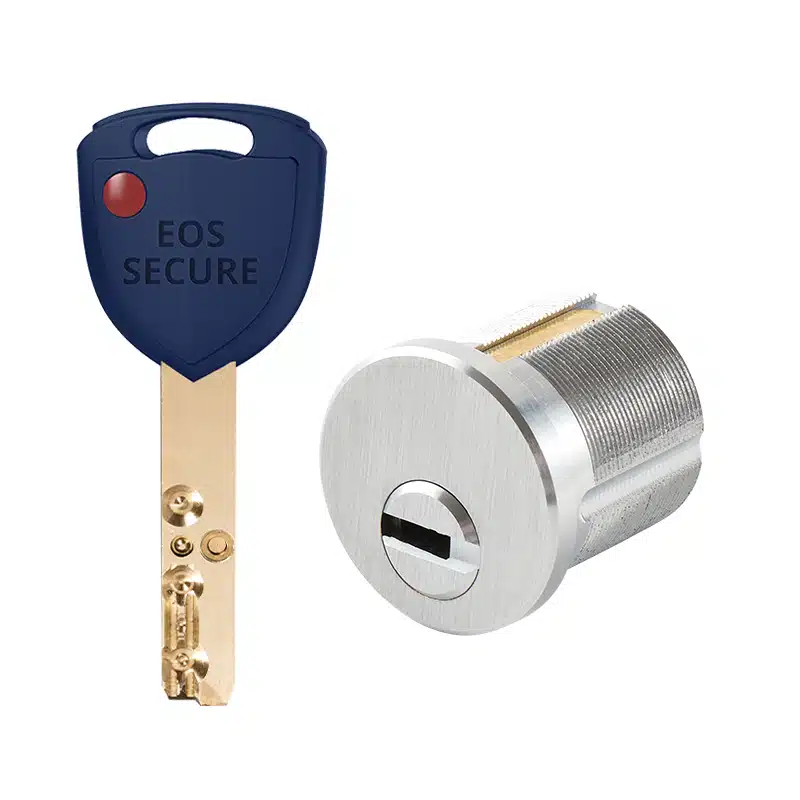

Keys are with side pins to enlarge key combinations.

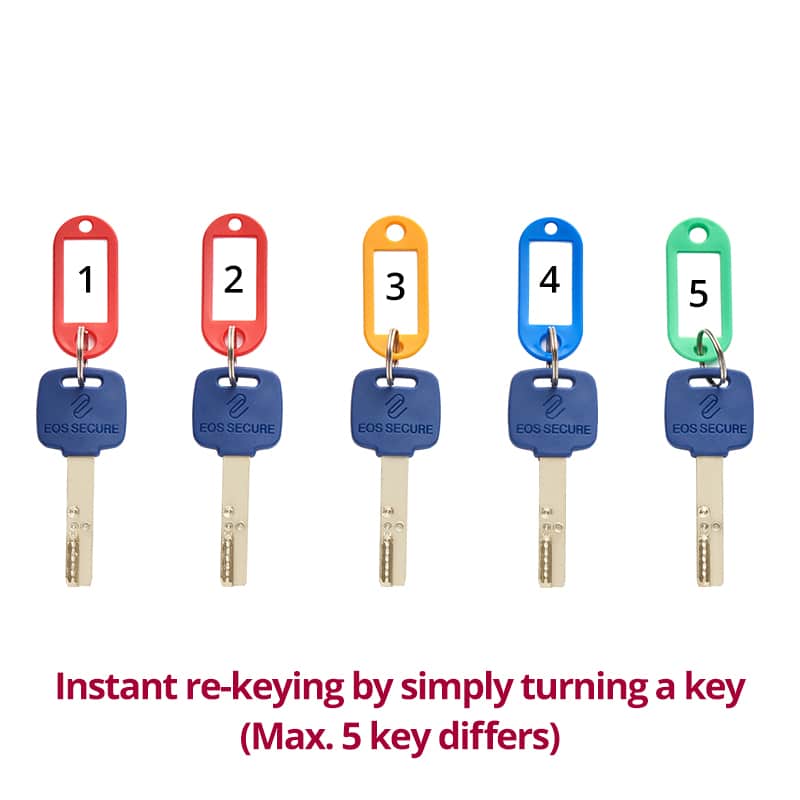

Maximum 5-in-1 function.
Standard 0.1 – 0.15mm gap between rotor and housing.
Suitable for doing master key system. Offering master pins (3 kinds).

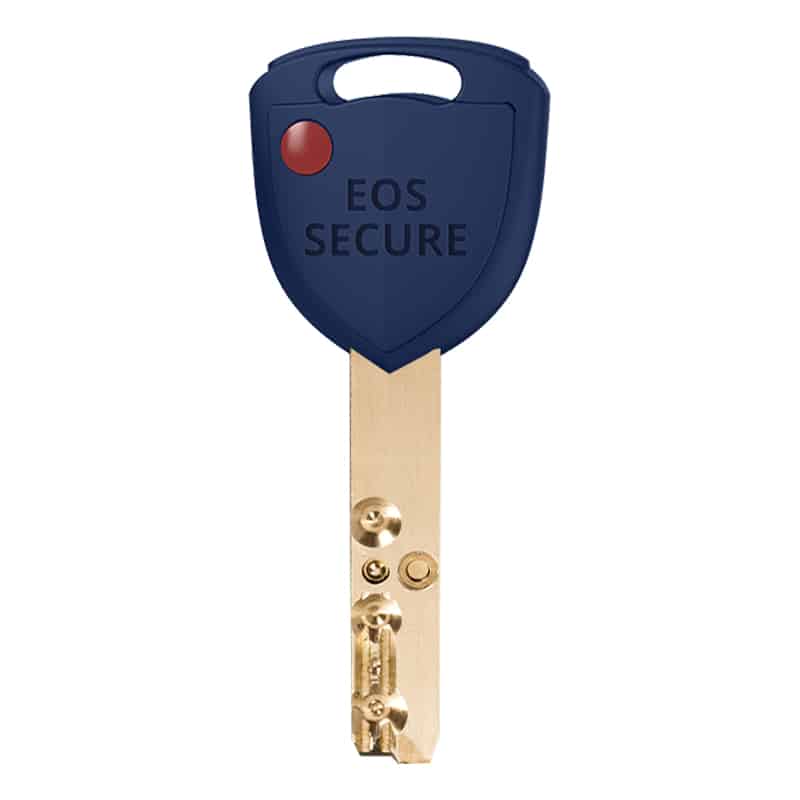

Key blanks with mobile pins assembled already.
Standard using #206, #266 key profile. Other key profiles are available.

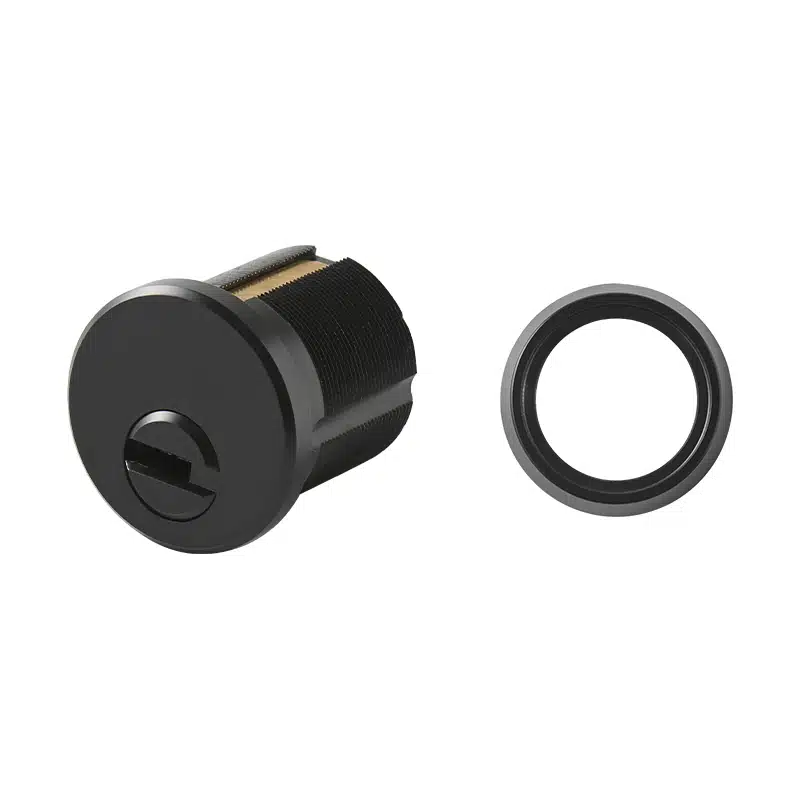

Available for different finishes. Plastic key head. Nickel silver keys.

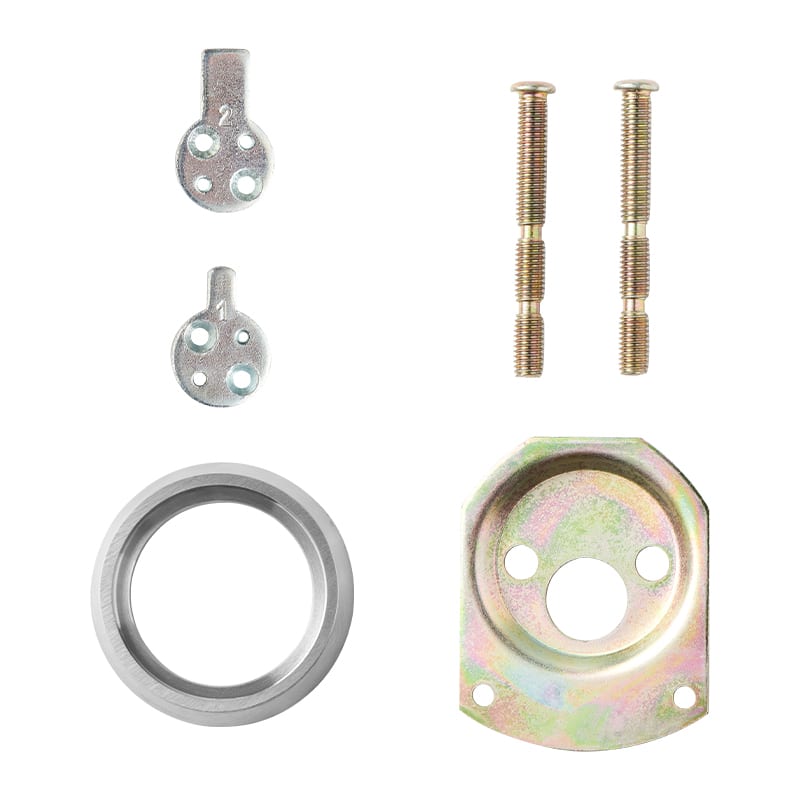

Optional different cams.

Rimo mortise cylinder with side pins

mul-t-lock cylindertelescopic lock cylinder components

Material of housing and plugs

Brass

Material of keys

Silver nickel with plastic key head

Optional surface finishes

SN, PB, SB, BLK, and so on

Usage

Security locking system

Inner pin

5 numbers

Outer(external) pin

4 numbers

Construction key (3 in 1 function)

Available

Master key system

Available

Type

Rim and mortise (RIMO)

Length

Customized length
