Modular System Cylinders

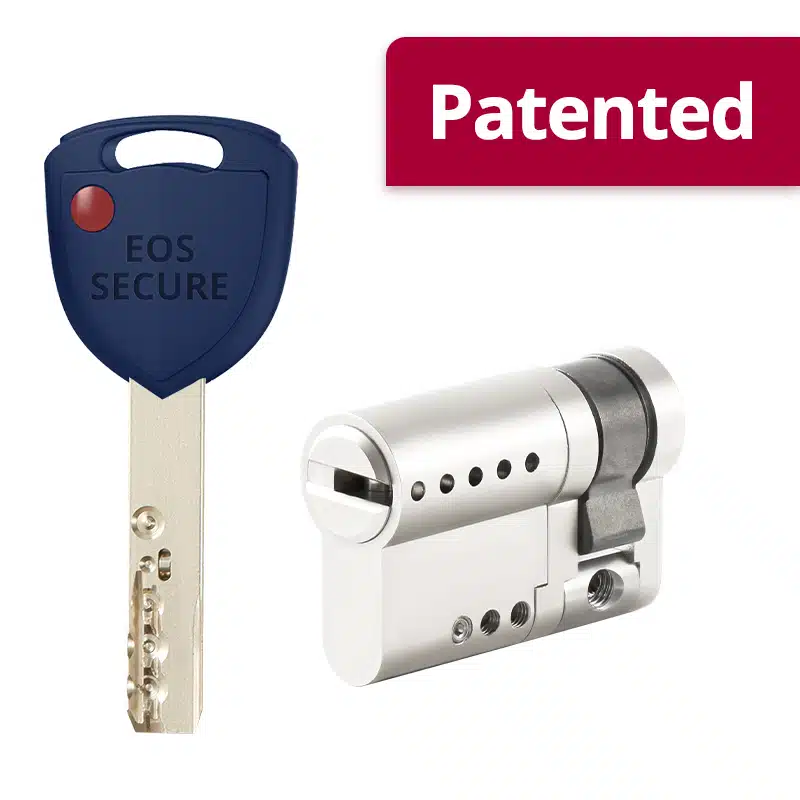

The patented modular system cylinder designed and developed by EOS-Secure is an Europe profile cylinder in which the cylinder lengths can be easily and efficently adjusted from 60mm to over 120mm by modular parts. The modular parts are including modular bridges, modular plugs, modular spacers, couplings, cams, mounting screws, and so on. The modular system is fully compatible with the cylinders models produced by EOS-Secure, and the cylinder types such as knob cylinder, double cylinder, and half cylinder.

Consult our sales team.

Customize The Length Of The Lock Cylinder

EOS-Secure’s patented modular system lock cylinder allows you to customize a cylinder of any ideal length, from the shortest 31mm to 120mm. Customers can use screw driver to finish the assembling in efficient way. EOS-Secure offers 8 sizes of connecting bridges to assemble the most common lengths of cylinders, so that customers don’t need to stock too many bridges. EOS-secure supplies all the parts and accessories, like 5mm/10mm/20mm extension pieces, and so on.

modular system cylinder

Customize The Length Of The Lock Cylinder

EOS-Secure’s patented modular system lock cylinder allows you to customize a cylinder of any ideal length, from the shortest 31mm to 120mm. Customers can use screw driver to finish the assembling in efficient way. EOS-Secure offers 8 sizes of connecting bridges to assemble the most common lengths of cylinders, so that customers don’t need to stock too many bridges. EOS-secure supplies all the parts and accessories, like 5mm/10mm/20mm extension pieces, and so on.

modular system cylinder

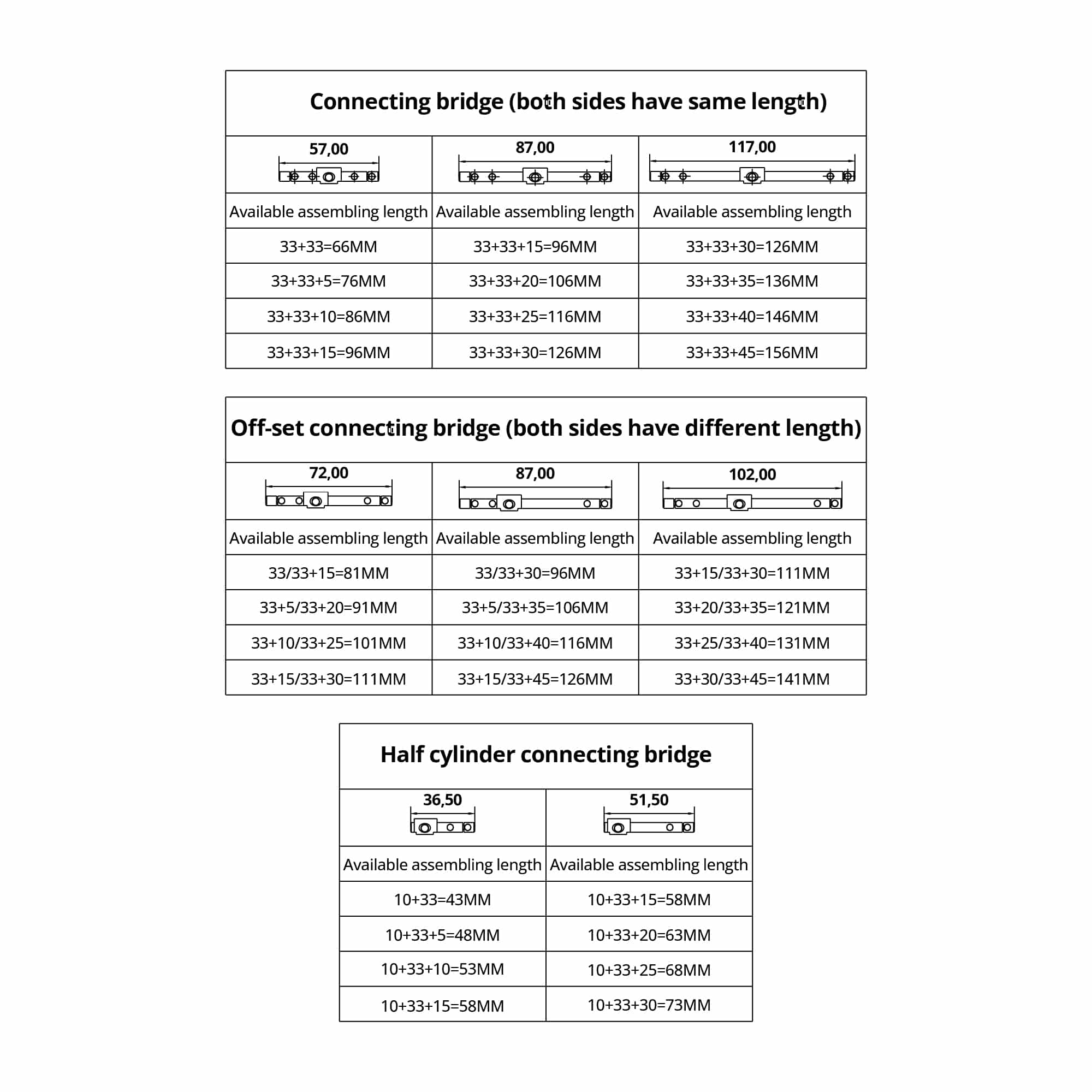

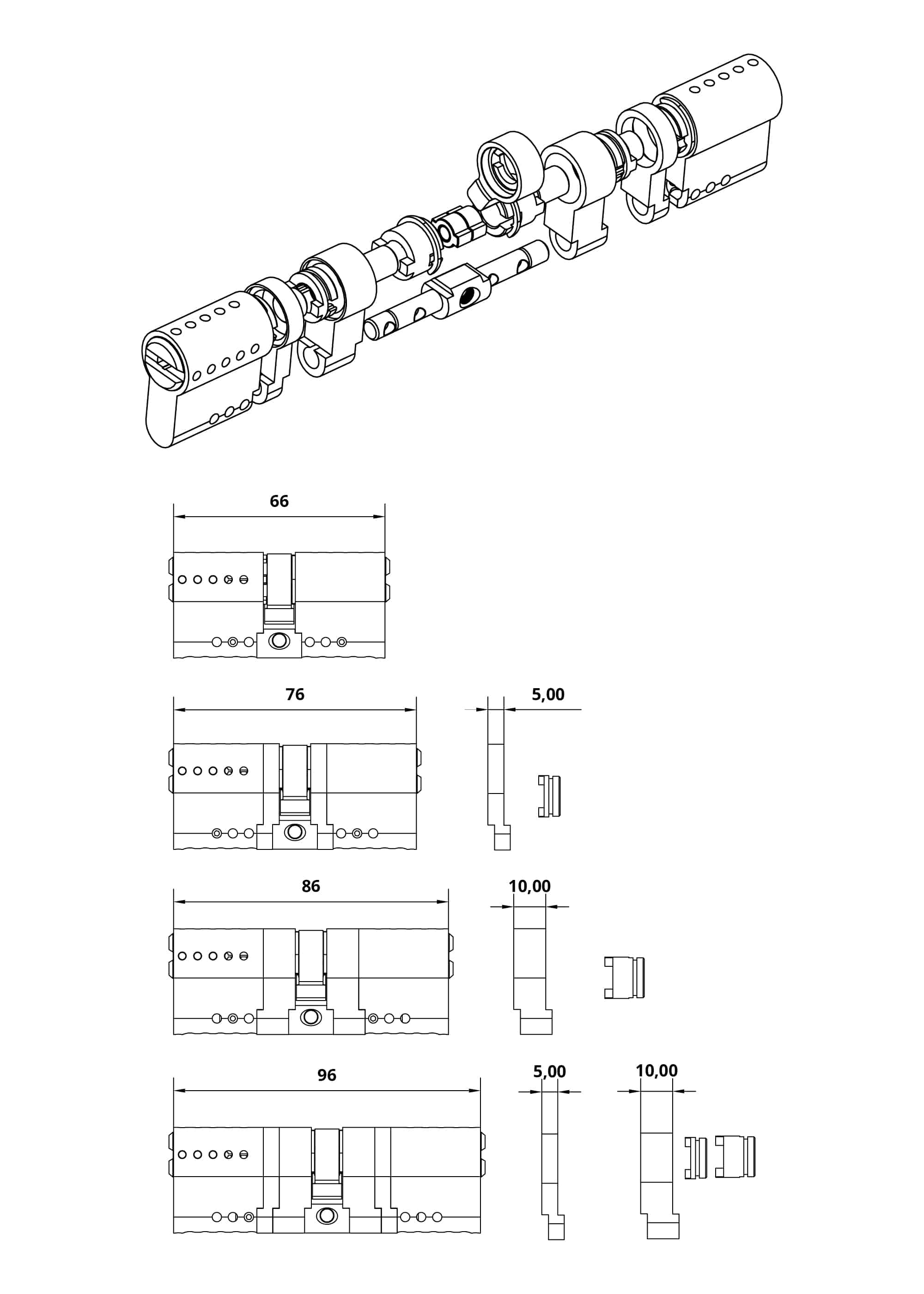

8 Sizes Of Connecting Bridges To Assemble Most Commonlengths

How To Assemble the Modular System

Master key system cylinders and Security cylinders manufacturer

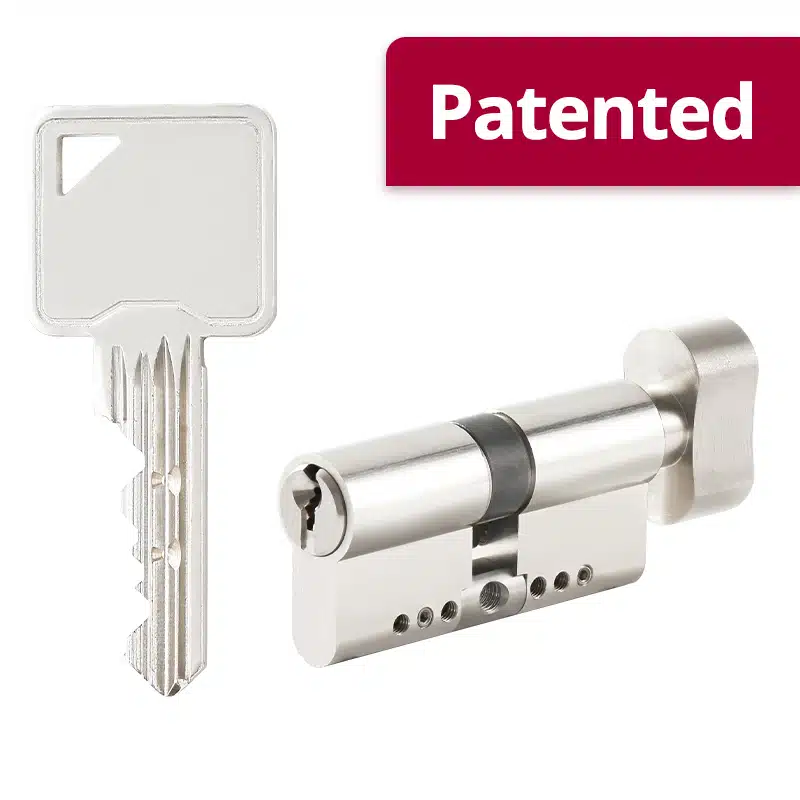

How to assemble the telescopic pin modular system cylinder – Knob cylinder

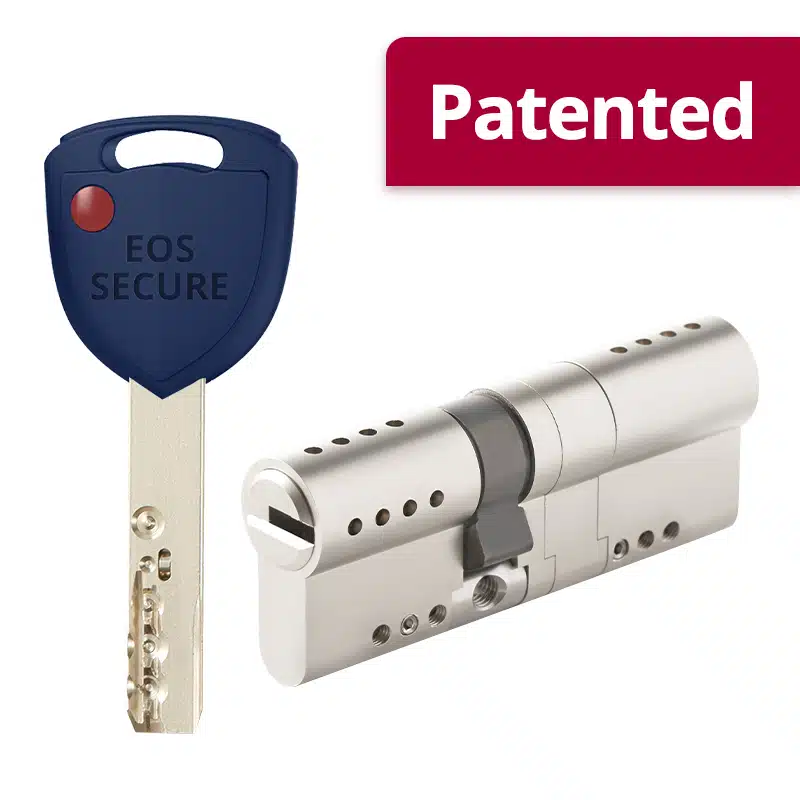

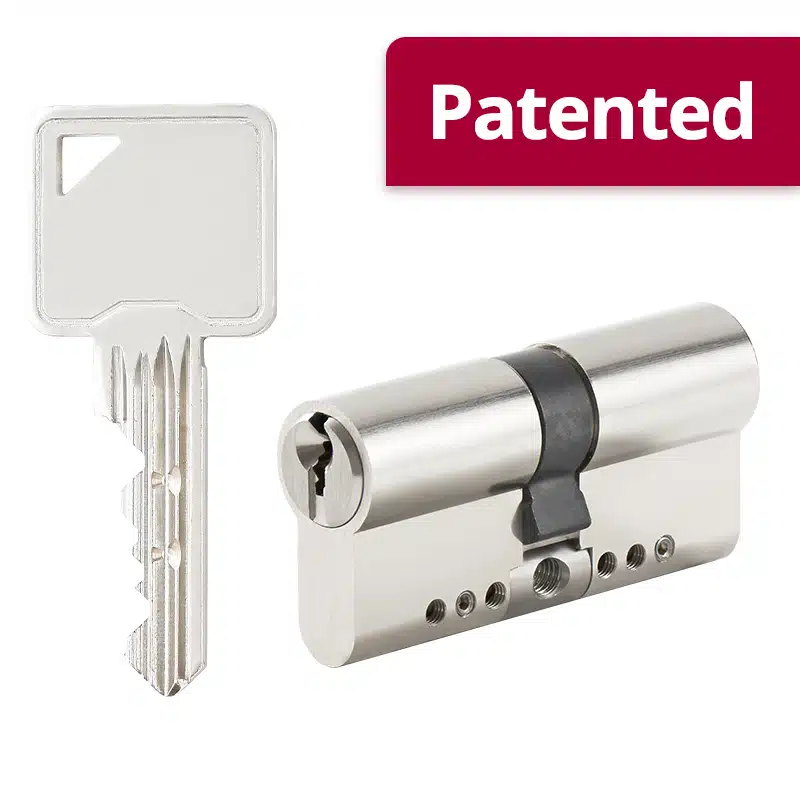

How to assemble the telescopic pin modular system cylinder – Double cylinder

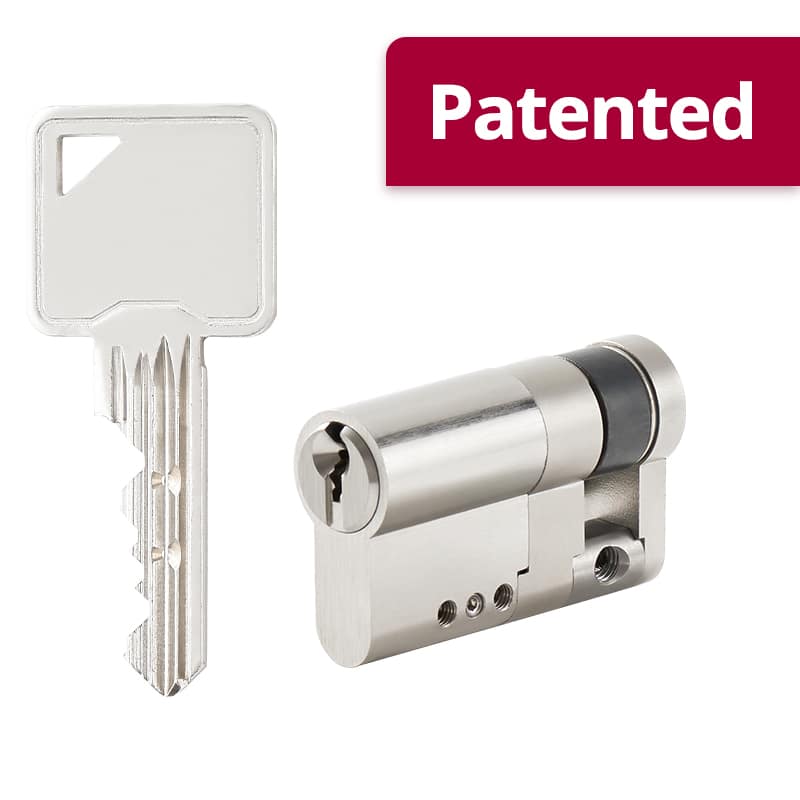

How to assemble the telescopic pin modular system cylinder – half cylinder

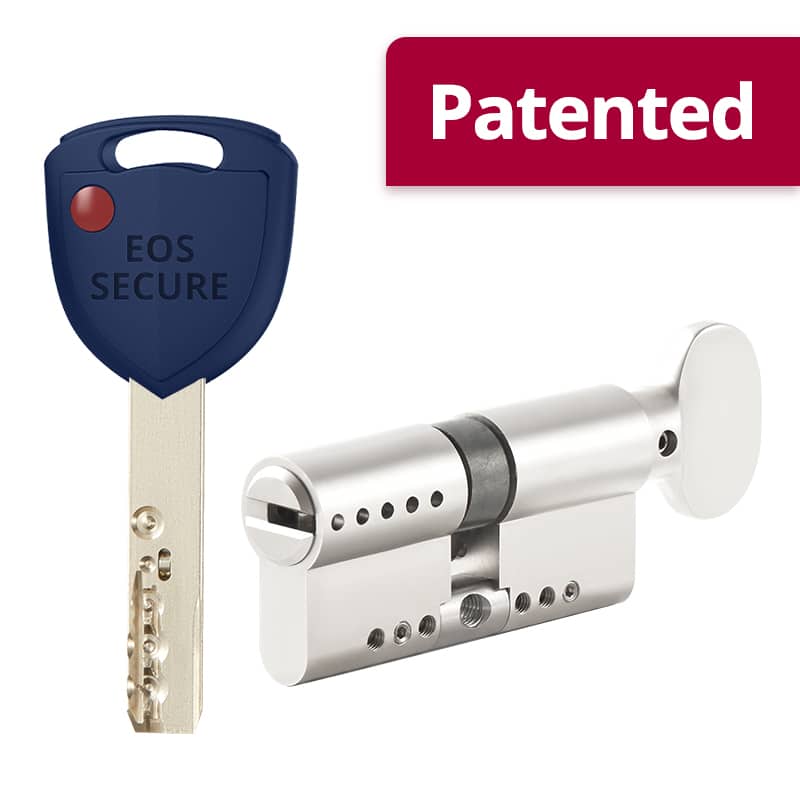

How to assemble the master key cylinder modular system – knob cylinder

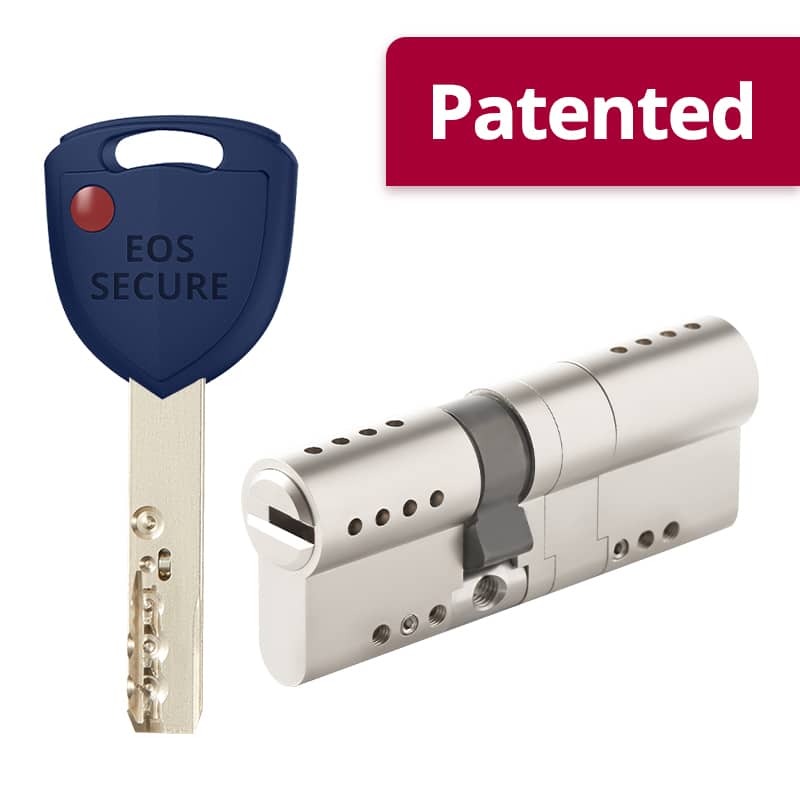

How to assemble the master key cylinder modular system –  double cylinder

How to assemble the master key cylinder modular system –  half cylinder
