For Mul T functional lock US American classic entrance mortise cam lock set rim rimo junior tail piece rekey lock cylinder

This type of cylinder adapts the pin-in-pin high-security technology to enhance the performance of anti-picking. It’s easier for customers to duplicate the keys since the dimension and distance of the pin are the same as Mul-T-Lock, so the locksmiths who have the Mul-T-Lock’s duplicating machine could do this job very conveniently.

Master Key System

EOS secure are able to provide master key system for this cylinder. Meanwhile, if you have in-house locksmithes, you can assemble the master key system by using the accessories including master pins.
Learn more about our Master key system service.

Customization

EOS secure provides customization and design services to boost your business.

Learn more about customization.

Small order

EOS secure provides small MOQ on our existing models for start-up customers or mock up samples for projects.

Contact us to start>

master key system and security cylinders

10 years of experience of master key system and security cylinders

high precision lock cylinders

Tsugami CNC Swiss-type automatic Lathe machine to guarantee the precision

lock cylinders R&D

Support your customize and Innovative design

lock cylinders quality control

Implement the strictest quality control

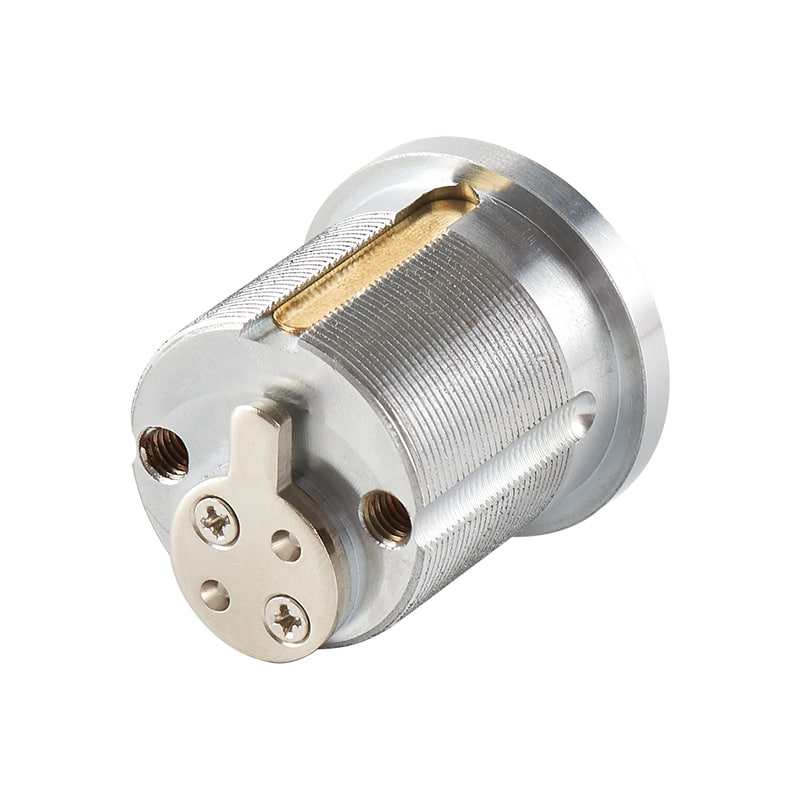

Rim cylinder and mortise cylinder are available by changing the cam or tailpiece.
Using the telescopic pin specification and mobile pin structure.
Standard 0.1 – 0.15mm gap between rotor and housing.
Suitable for doing master key system. Offering master pins (3 kinds).

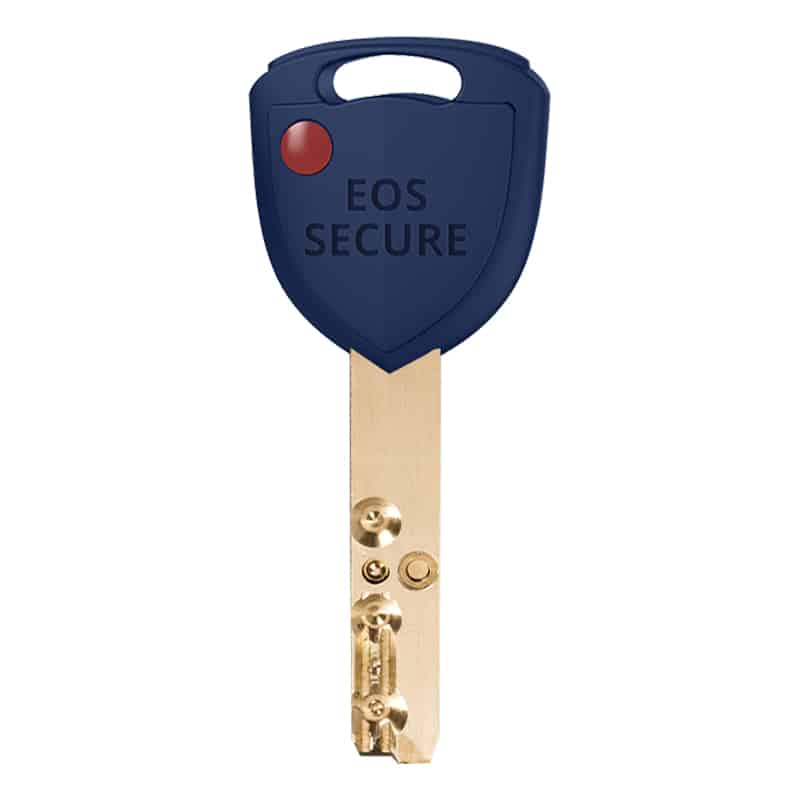

Key blanks with mobile pins assembled already.
Standard using #206, #266 key profile. Other key profiles are available.
Available for different finishes. Plastic key head. Nickel silver keys.

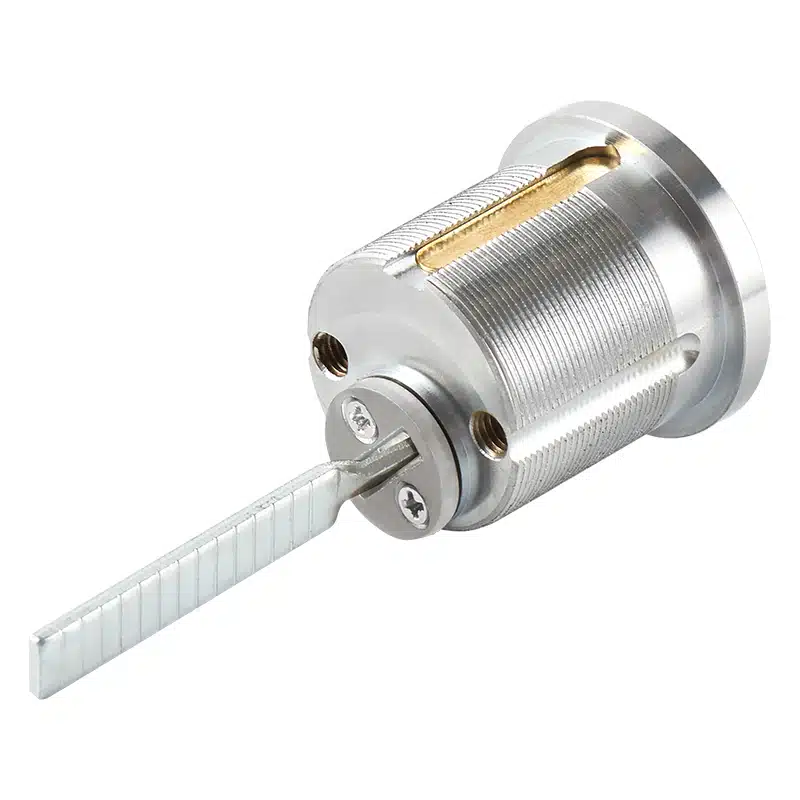

Optional different cams.

rim mortise cylinder rimomul-t-lock cylinder

Material of housing and plugs

Brass

Material of keys

Silver nickel with plastic key head

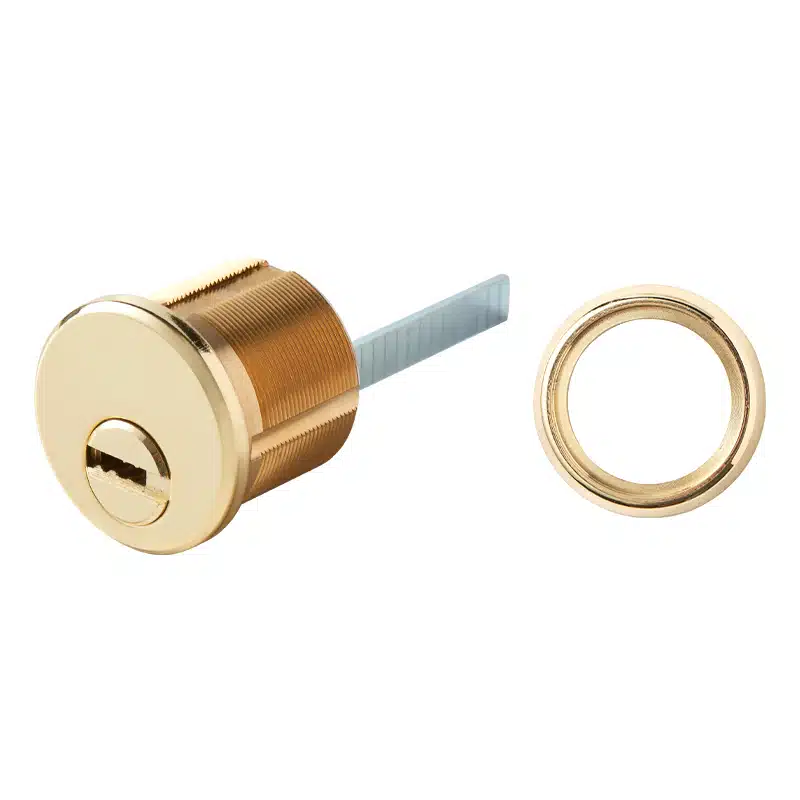

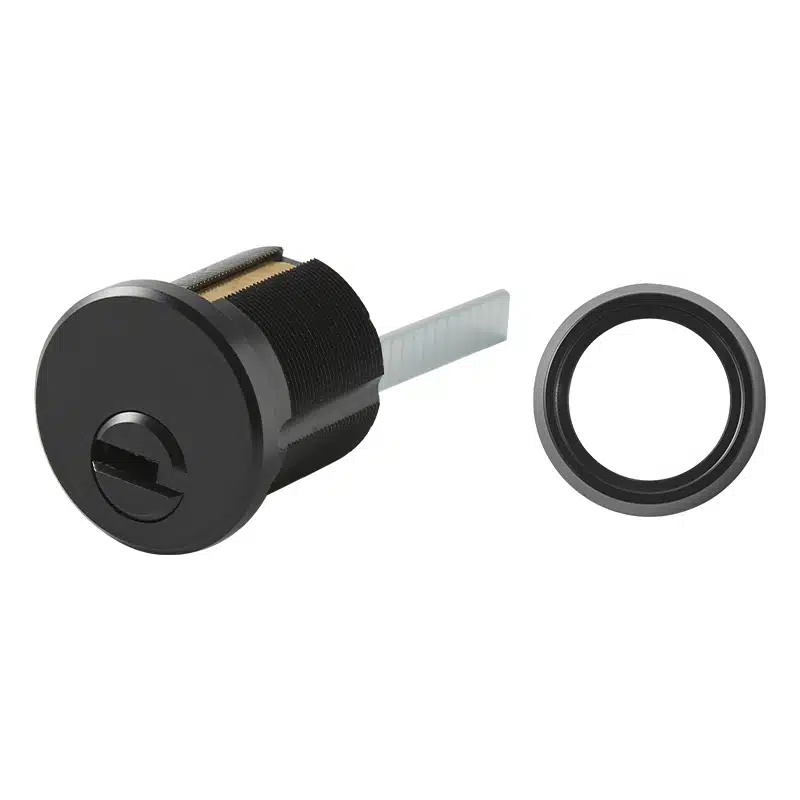

Optional surface finishes

SN, PB, SB, BLK, and so on

Usage

Security locking system

Inner pin

5 numbers

Outer(external) pin

4 numbers

Construction key (3 in 1 function)

Available

Master key system

Available

Type

Rim and mortise (RIMO)

Length

Customized length
