Double floating pins anti copy enhanced security entrance steel door lock cylinder

Master Key System

EOS secure are able to provide master key system for this cylinder. Meanwhile, if you have in-house locksmithes, you can assemble the master key system by using the accessories including master pins.
Learn more about our Master key system service.

Customization

EOS secure provides customization and design services to boost your business.

Learn more about customization.

Small order

EOS secure provides small MOQ on our existing models for start-up customers or mock up samples for projects.

Contact us to start>

master key system and security cylinders

10 years of experience of master key system and security cylinders

high precision lock cylinders

Tsugami CNC Swiss-type automatic Lathe machine to guarantee the precision

lock cylinders R&D

Support your customize and Innovative design

lock cylinders quality control

Implement the strictest quality control

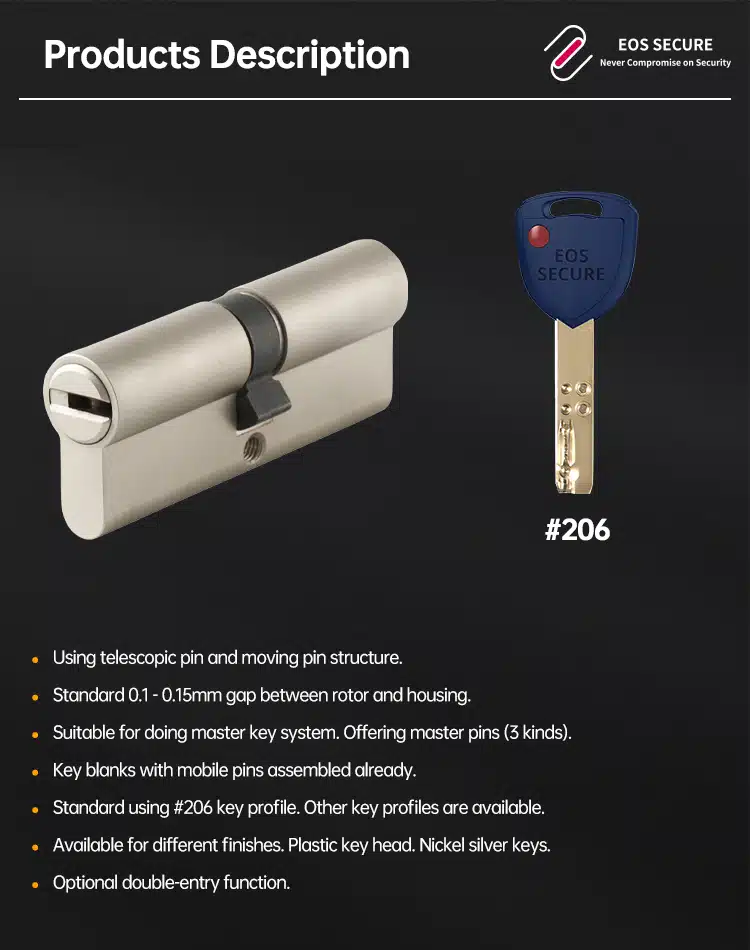

Double moblie pins increase the difficulty of technical opening.
Using telescopic pin and moving pin structure.
Standard 0.1 – 0.15mm gap between rotor and housing.
Suitable for doing master key system. Offering master pins (3 kinds).

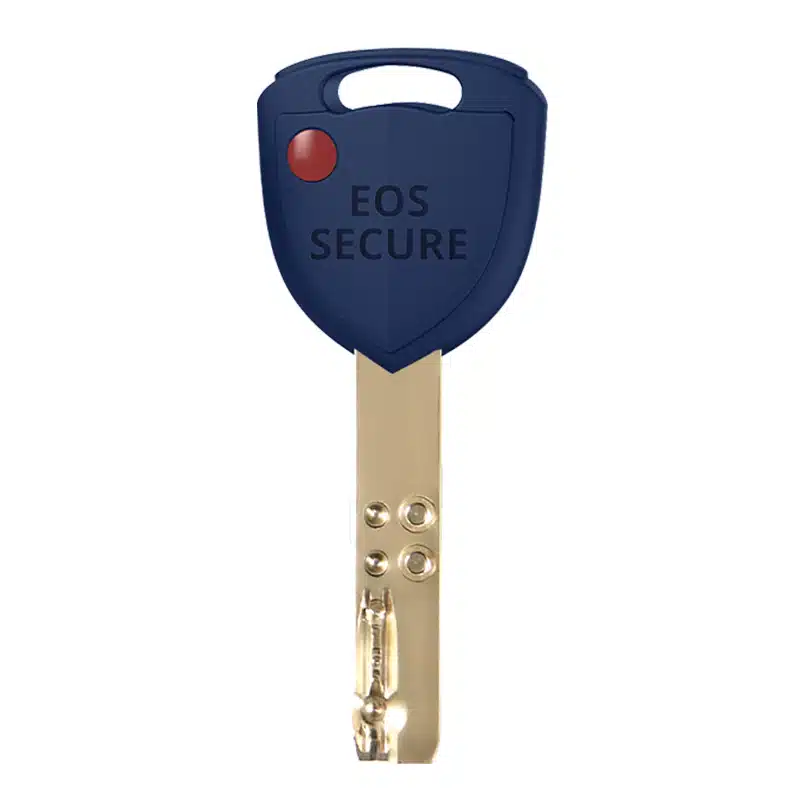

Key blanks with mobile pins assembled already.
Standard using #206 key profile. Other key profiles are available.
Available for different finishes. Plastic key head. Nickel silver keys.
Optional double-entry function.

mul-t-lock interactivemul-t-lock lock cylinder manufacturer mul-t-lock lock cylinder manufacturer

Material of housing and plugs

Brass

Material of keys

Brass

Optional surface finishes

SN, PB, SB, BLK, and so on

Dimension of housing

33*17*10mm Din standard

Usage

Making master locking system

Mutual opening

No mutual open with only 1 number difference

Inner pin

5 numbers

Outer(external) pin

4 numbers

Construction key

Available

Master key system

Available

Certification

EN1303:2015
