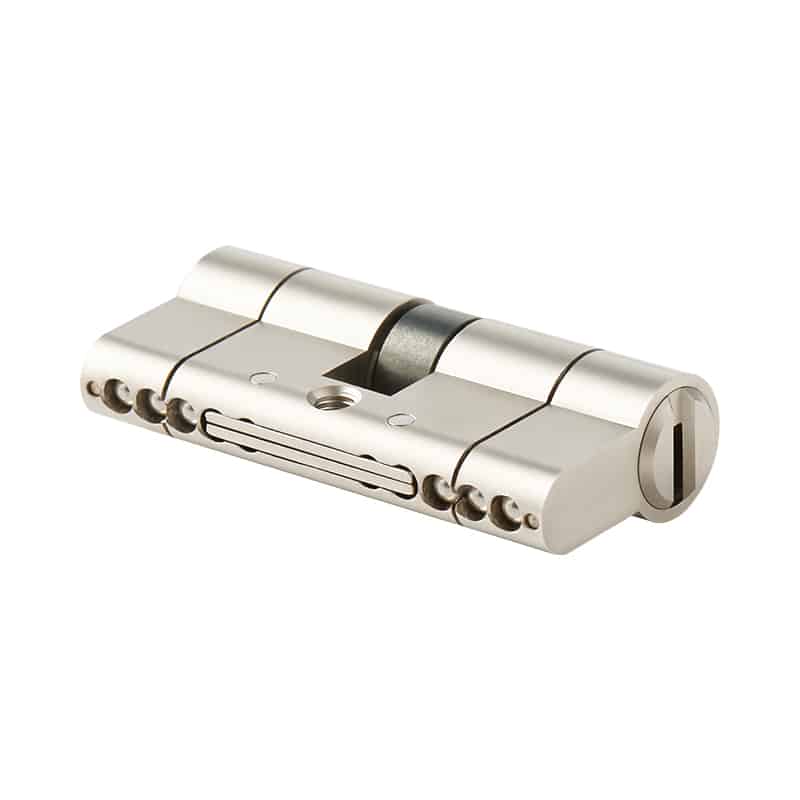

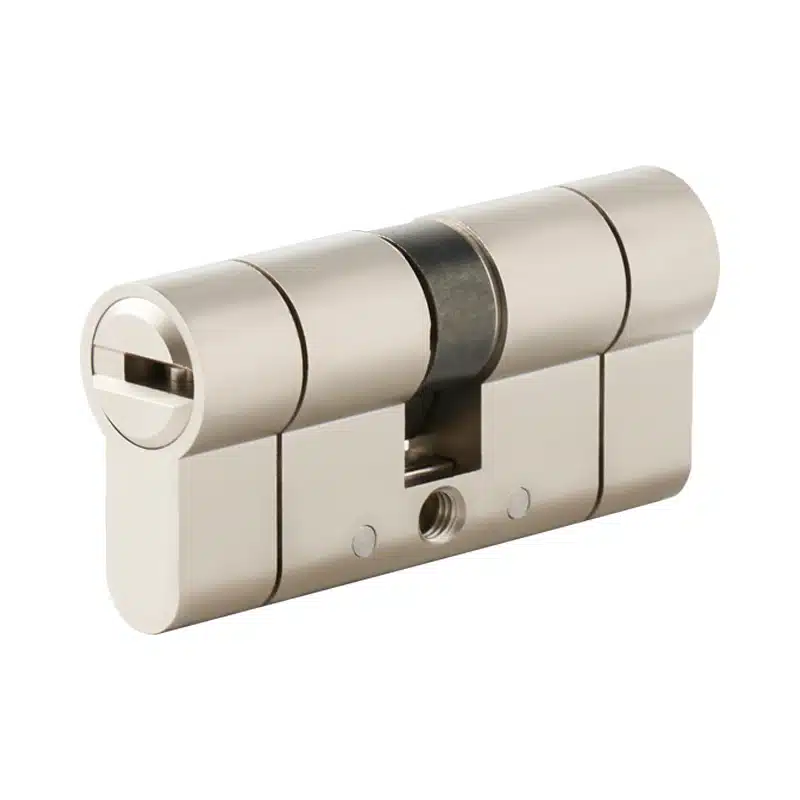

High security european profile anti breaking sacrificial cut brass nickel finish double open emergency security lock cylinder
This security lock cylinder adapts pin-in-pin telescopic anti-picking, anti-breaking, and anti-drilling security features.
Master Key System
EOS secure are able to provide master key system for this cylinder. Meanwhile, if you have in-house locksmithes, you can assemble the master key system by using the accessories including master pins.
Learn more about our Master key system service.
Customization
EOS secure provides customization and design services to boost your business.
Small order
EOS secure provides small MOQ on our existing models for start-up customers or mock up samples for projects.
10 years of experience of master key system and security cylinders
Tsugami CNC Swiss-type automatic Lathe machine to guarantee the precision
Support your customize and Innovative design
Implement the strictest quality control

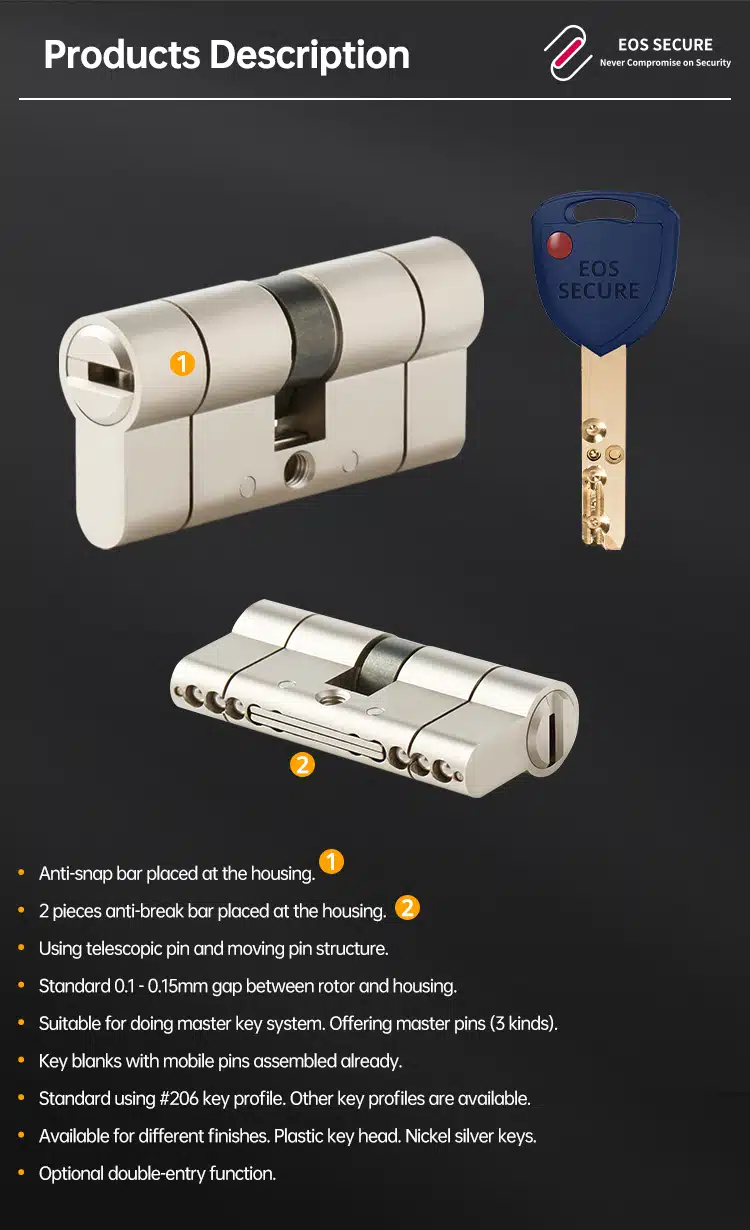

Anti-snap bar placed at the housing, security lock cylinder.
2 pieces anti-break bar placed at the housing.
Using telescopic pin and moving pin structure.
Standard 0.1 – 0.15mm gap between rotor and housing.

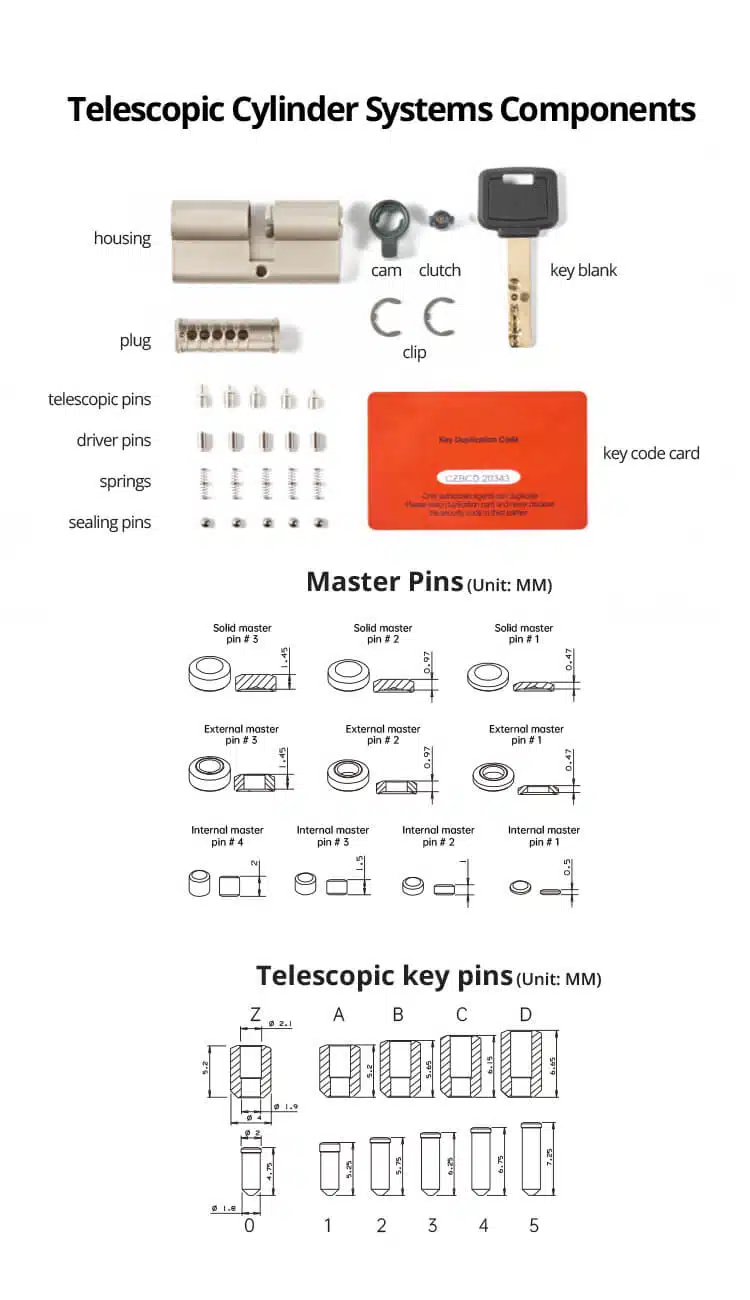

Suitable for doing master key system. Offering master pins (3 kinds).

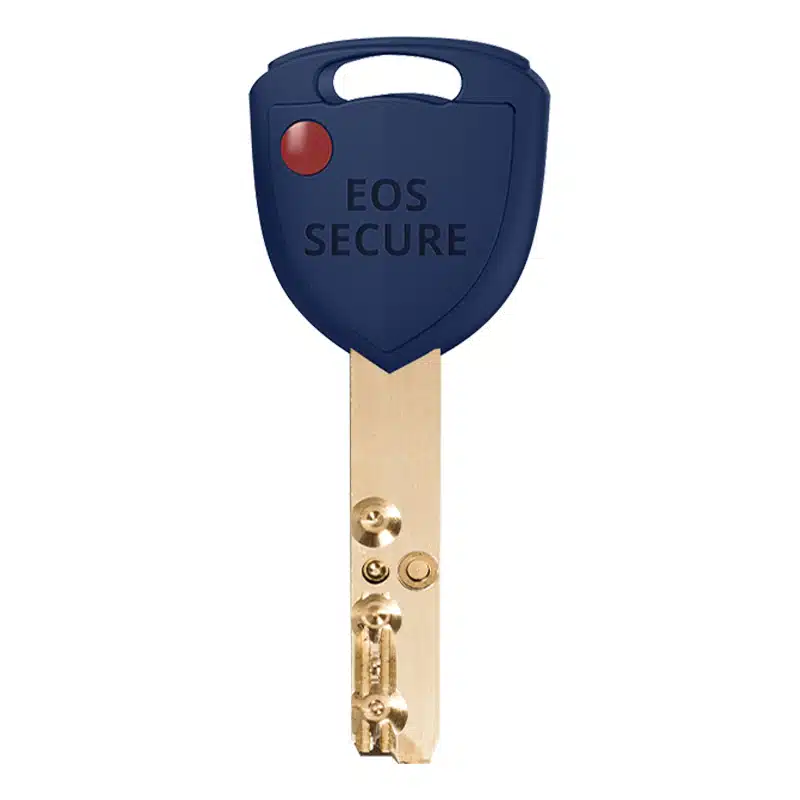

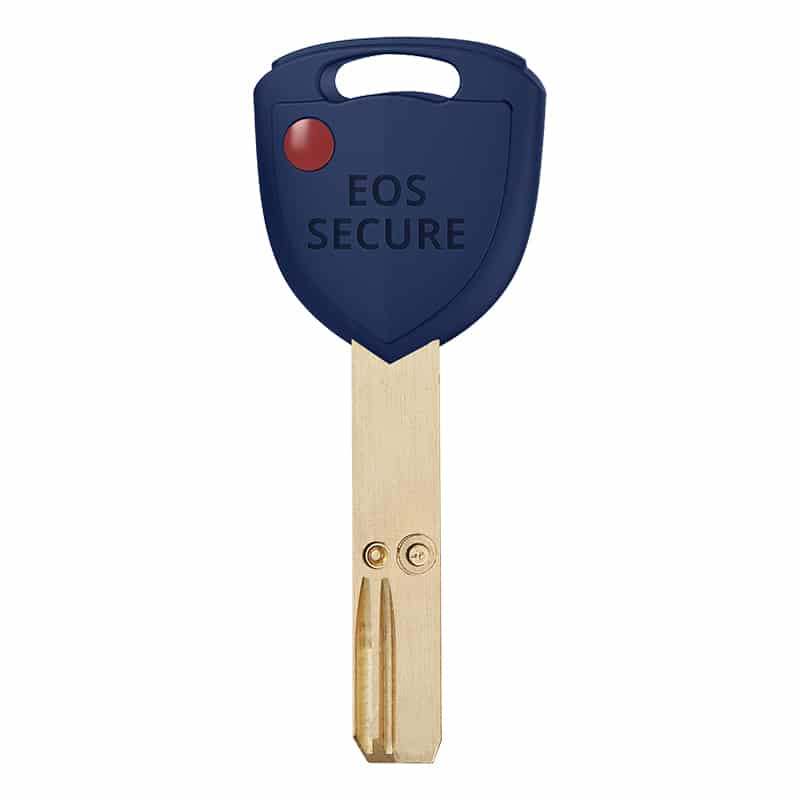

Key blanks with mobile pins assembled already.
Standard using #206 key profile. Other key profiles are available.
Available for different finishes. Plastic key head. Nickel silver keys.

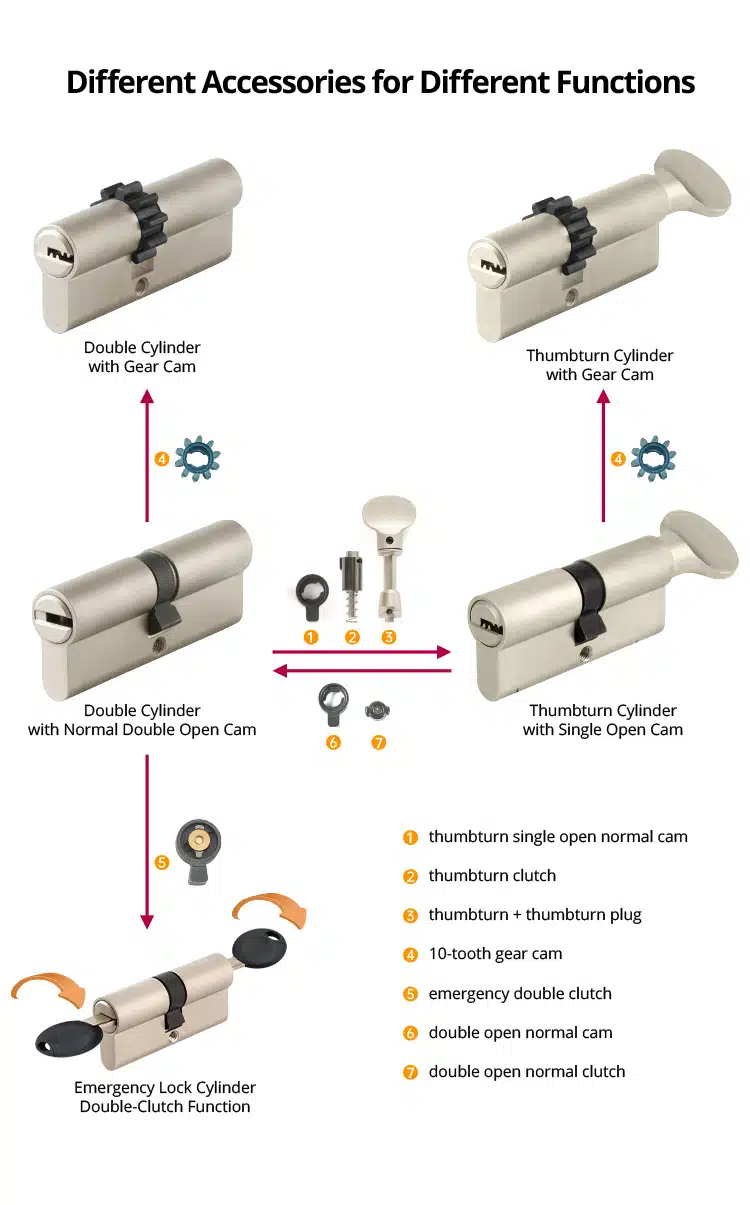

Optional double-entry function.
| Material of housing and plugs |
Brass |
|---|---|
| Material of keys |
Brass |
| Optional surface finishes |
SN, PB, SB, BLK, and so on |
| Dimension of housing |
33*17*10mm Din standard |
| Usage |
Making master locking system |
| Mutual opening |
No mutual open with only 1 number difference |
| Inner pin |
5 numbers |
| Outer(external) pin |
4 numbers |
| Construction key |
Available |
| Master key system |
Available |
| Certification |
EN1303:2015 |
